Overview

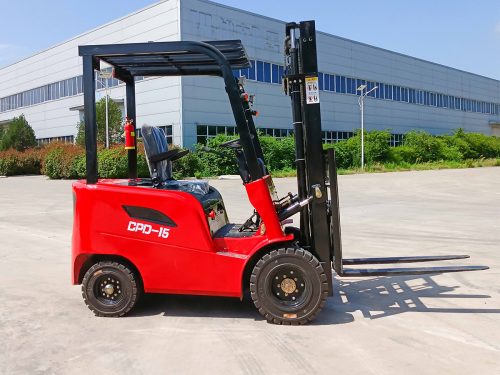

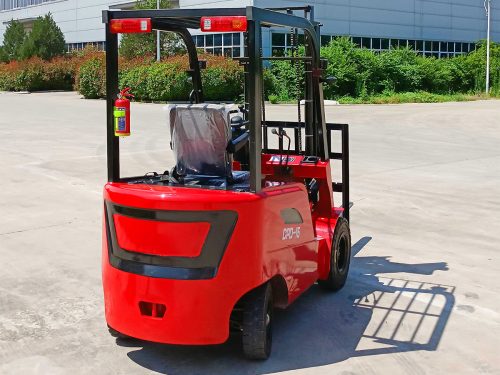

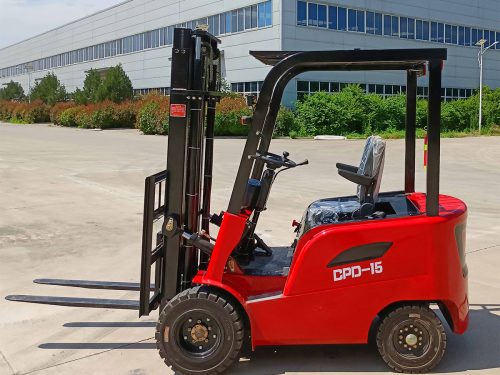

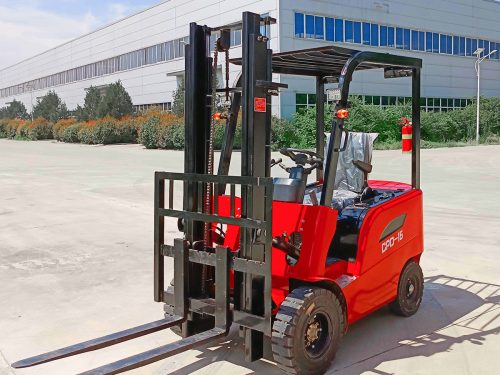

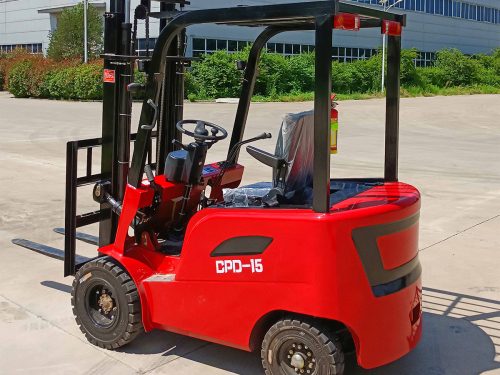

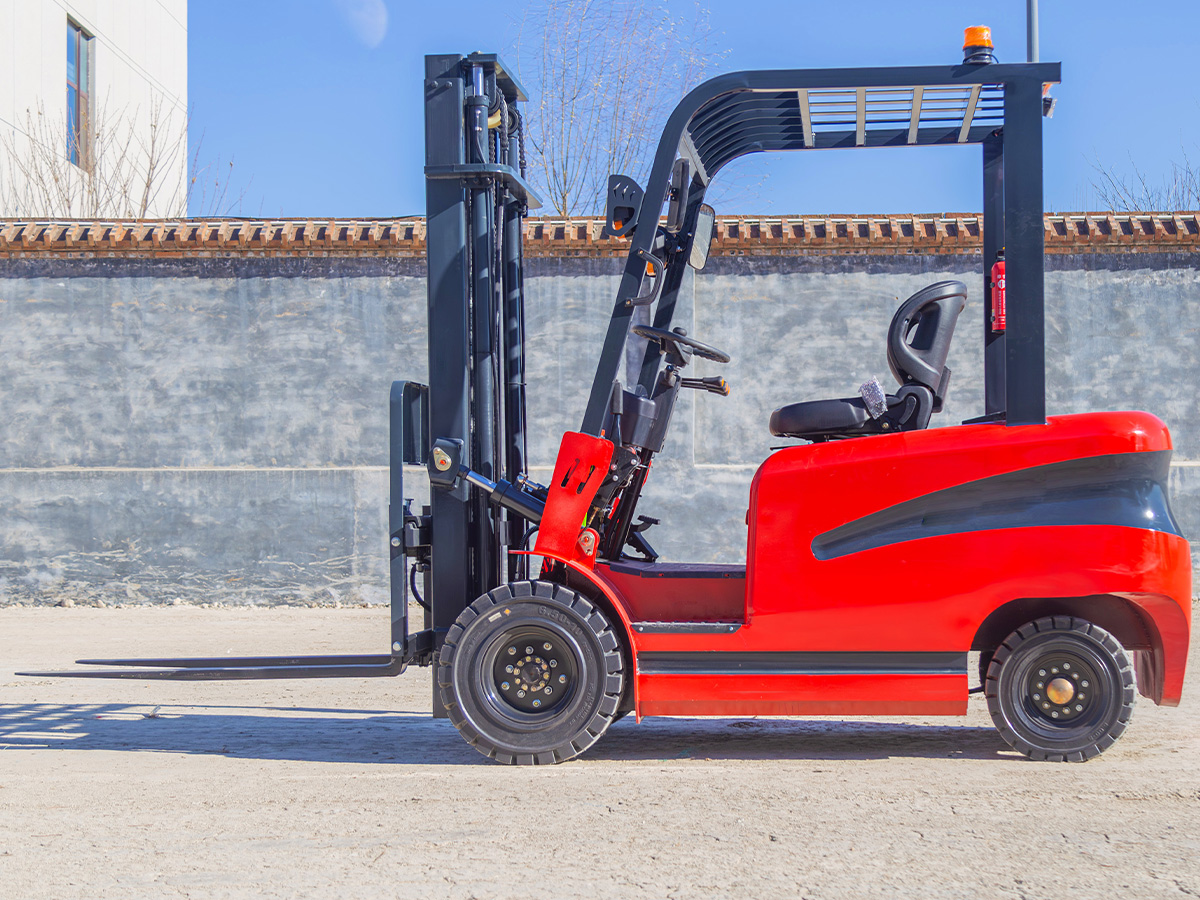

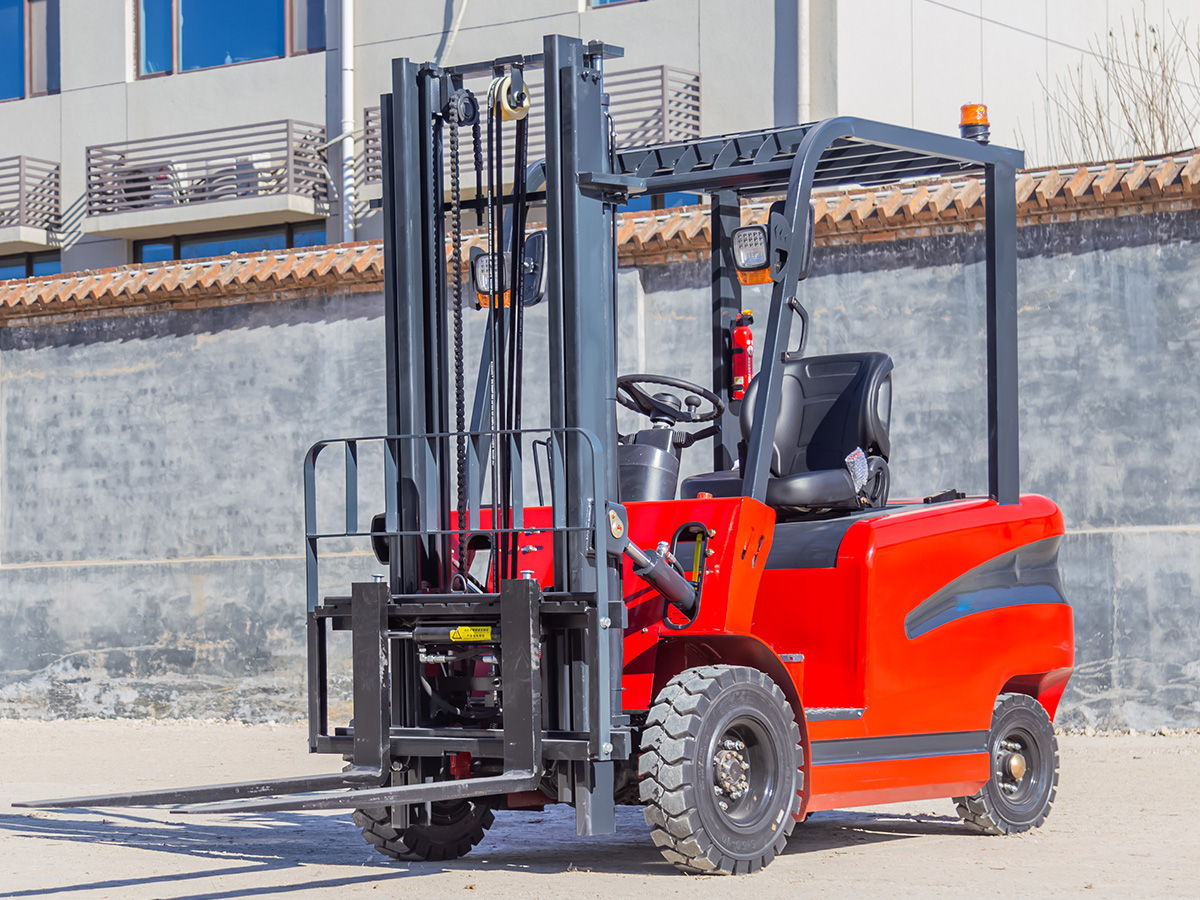

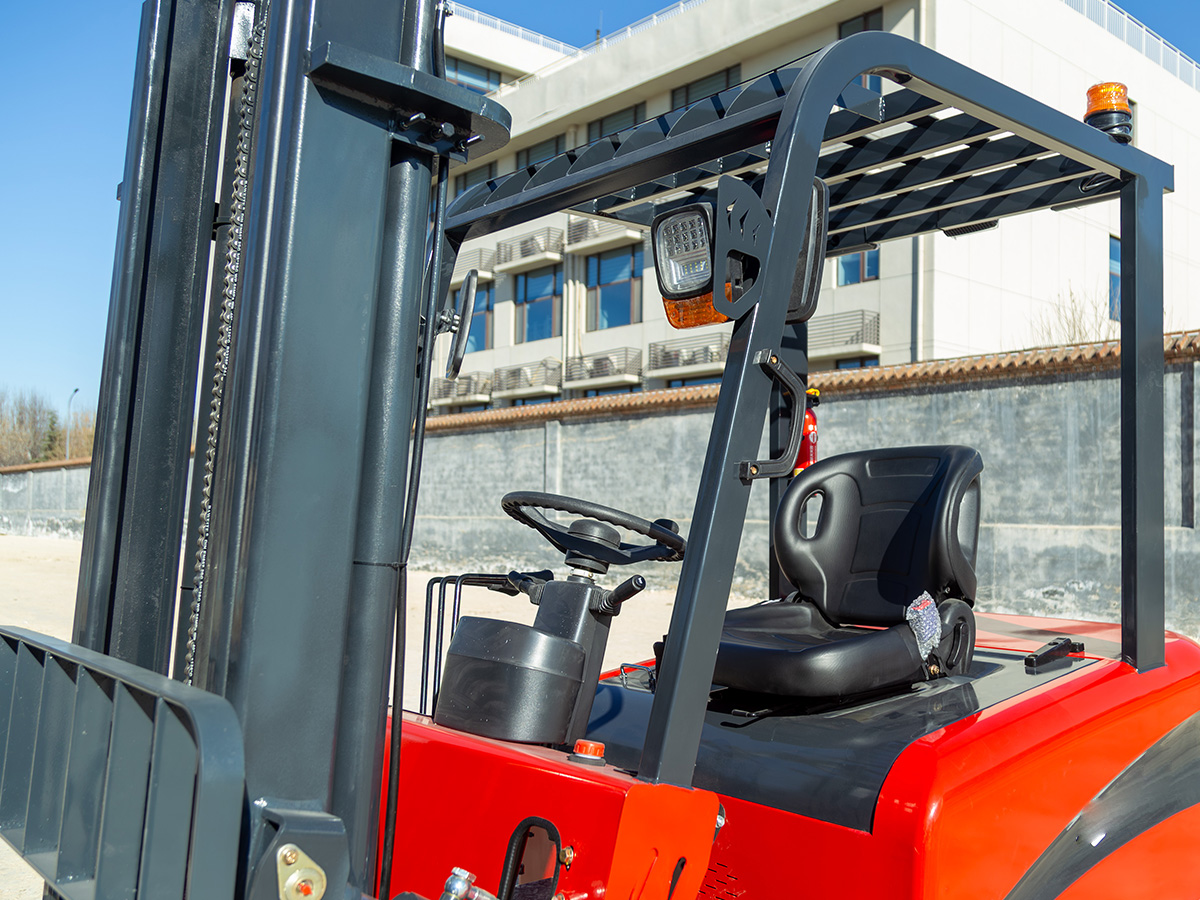

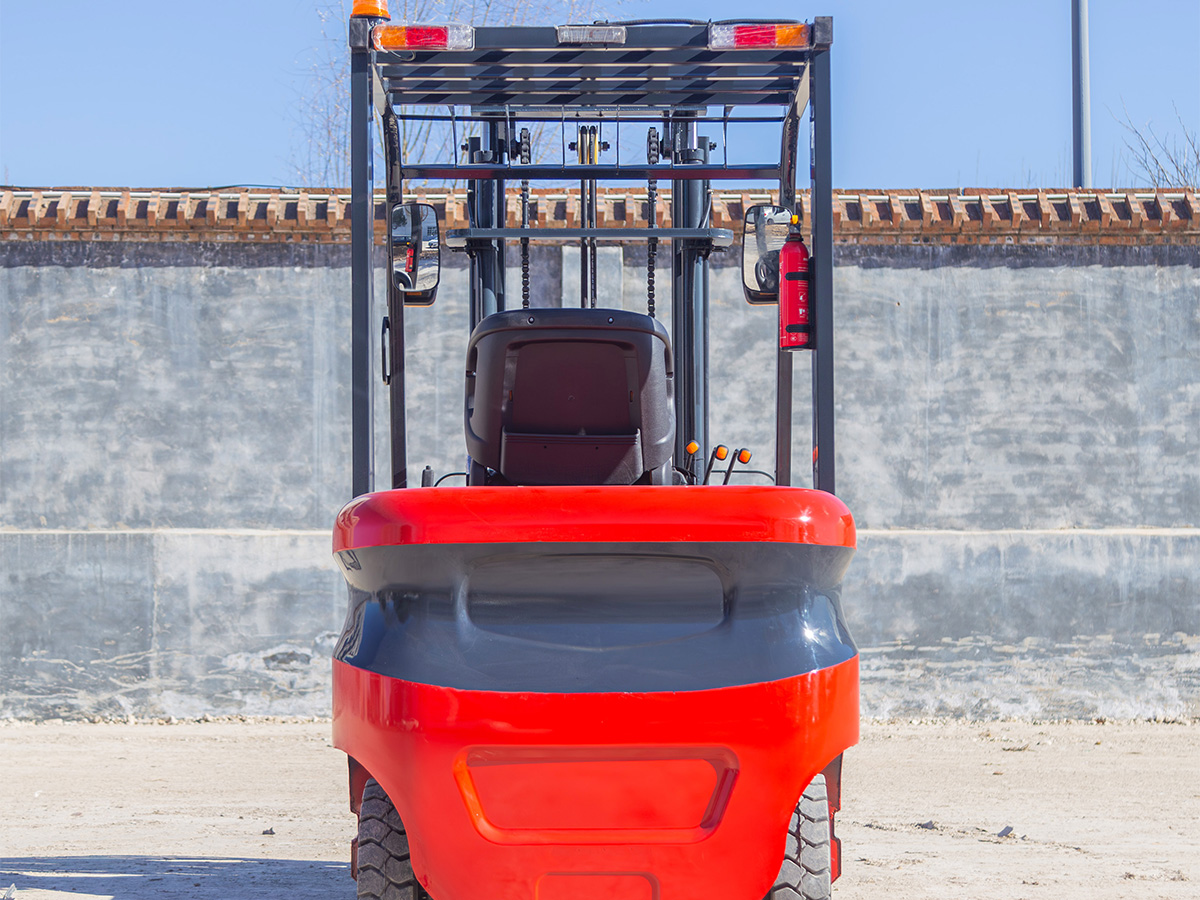

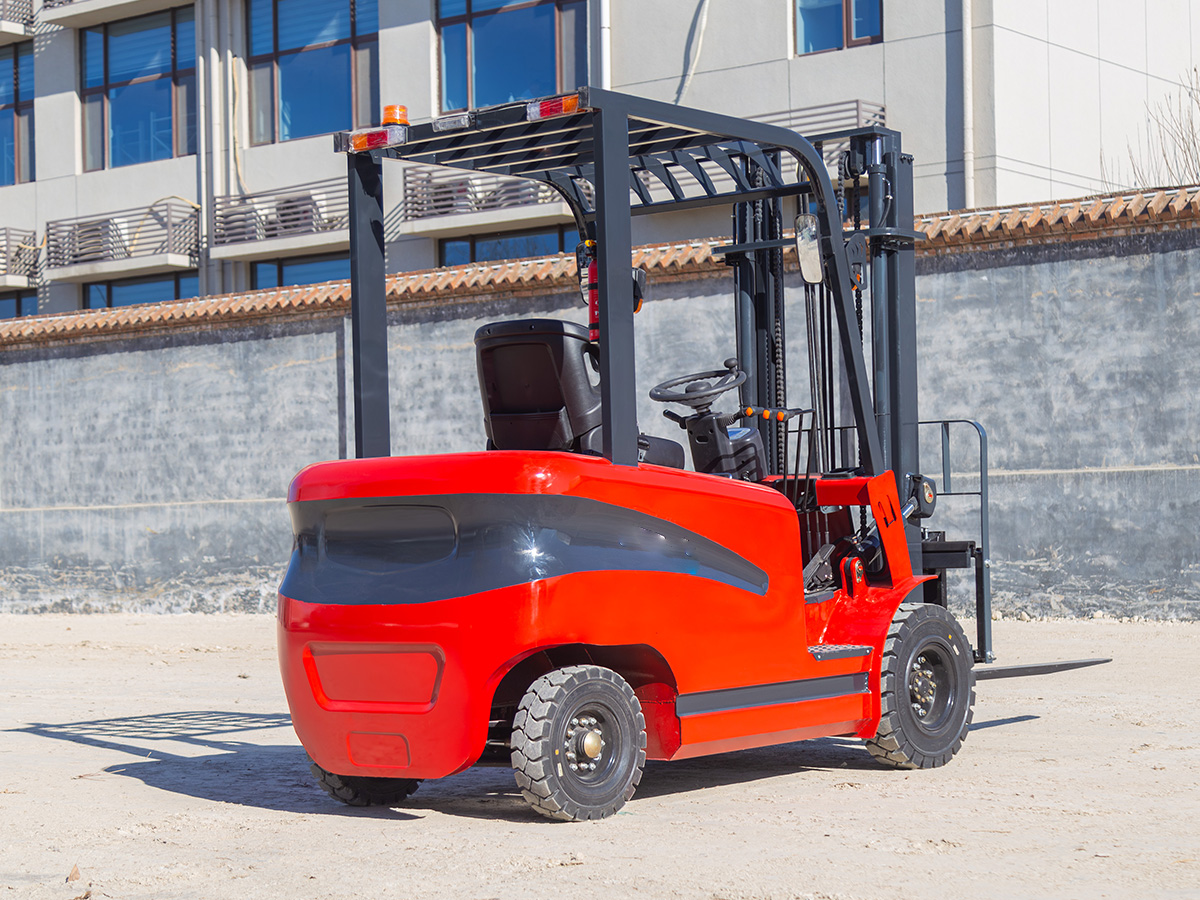

The 1 ton electric forklift is designed for modern warehouses and small businesses, offering compact size, high efficiency, and reliable performance. Ideal for lifting, transporting, and stacking pallets, this mini electric forklift maximizes productivity while minimizing operational costs. Built with advanced battery technology, it ensures longer working hours and eco-friendly operation.
Features
✅ Compact Design – Perfect for narrow aisles and limited space warehouses.
✅ Efficient Performance – Lifting capacity up to 1 ton with smooth hydraulic control.
✅ Eco-Friendly Battery – Zero emissions, low noise, and energy-saving operation.
✅ Durable Build – Heavy-duty steel frame ensures long-term reliability.
✅ Easy Operation – Ergonomic controls for operators of all skill levels.
✅ Low Maintenance – Minimal servicing required with high-quality components.
Product Parameters
| Rated lifting capacity(kg) | 1000 |
| Load center distance(mm) | 350 |
| With fork(mm) | 3020 |
| Without fork(mm) | 1950 |
| Full width(mm) | 1200 |
| No lifting of the mast height(mm) | 2100 |
| Height of the roof guard(mm) | 2100 |
| Maximum height during operation(m) | 3-4 |
| Distance from the seat surface to the front(mm) | 970 |
| Front(mm) | 780 |
| Suspension travel(mm) | 327 |
| Rear suspension travel(mm) | 313 |
| Front wheel track(mm) | 840 |
| Rear wheel track(mm) | 741 |
| Minimum ground clearance(mm) | 150 |
| Maximum lifting height(m) | 3-4 |
| Lift lever adjustment range(mm) | 1040 |
| Minimum turning radius (outer side)(mm) | 1885 |
| Minimum right-angle passage width(mm) | 3550 |
| Tire size (front)(mm) | 500-8 |
| Tire size (rear)(mm) | 400-8 |
| Lead-acid battery voltage/capacity(v/ah) | 60-45 |
| Drive motor power(kw) | 1.5 |
| Oil pump motor power(kw) | 2 |
