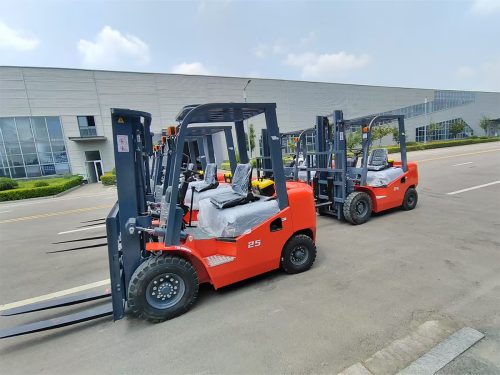

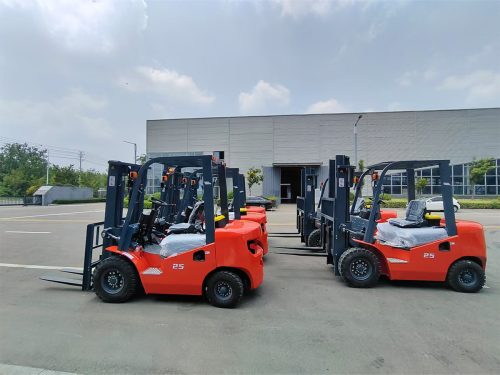

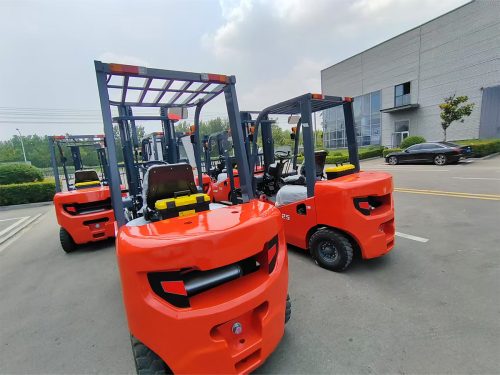

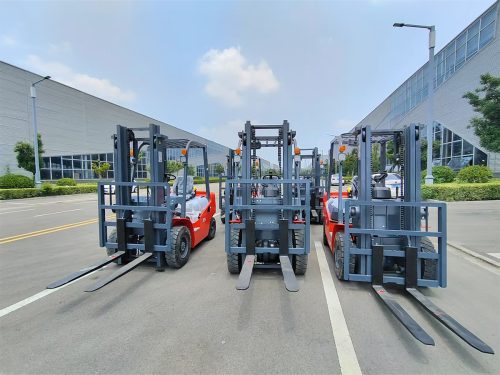

The 2.5 ton diesel forklift is one of the most reliable and versatile lifting machines for material handling, widely used in warehouses, construction sites, logistics centers, farming, and industrial manufacturing. As a direct manufacturer and trusted supplier, we provide forklifts with competitive prices, multiple configurations, and full specifications to meet diverse buyer needs.
If you are searching for a 2.5 ton diesel forklift price, looking for a forklift for sale, or comparing different forklift suppliers, this page gives you everything you need — from specifications and features to applications and benefits.
Key Features of 2.5 Ton Diesel Forklift
Powerful Diesel Engine: Provides high torque output, making it suitable for heavy-duty lifting.
Load Capacity: Standard rated load of 2500 kg (2.5 ton), ideal for most warehouse and construction operations.
Durability: Built with reinforced steel frame and reliable hydraulic systems.
Versatile Attachments: Compatible with side shifters, clamps, and other forklift attachments.

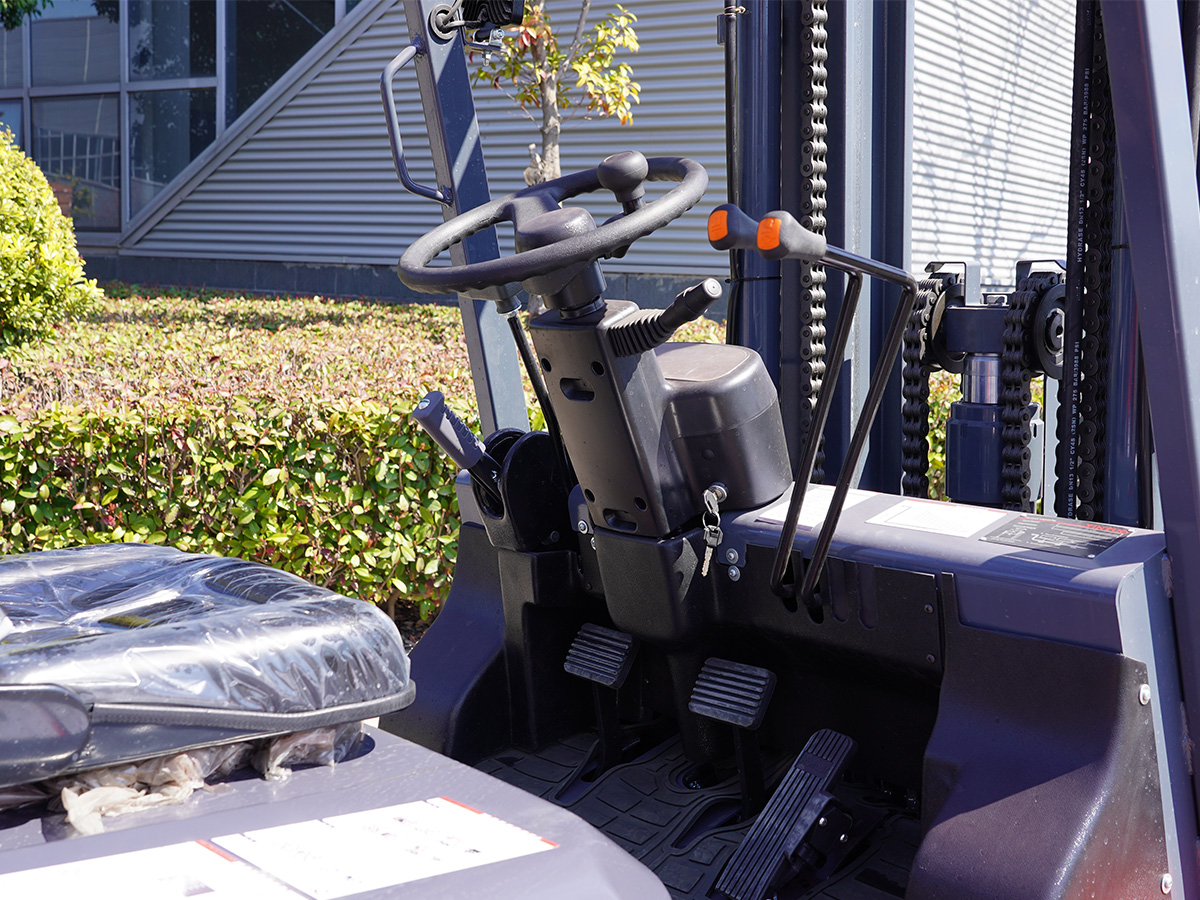

Ergonomic Design: Adjustable seat, wide-view mast, and user-friendly controls for operator comfort.
Fuel Efficiency: Optimized diesel engine ensures lower fuel consumption and reduced operating costs.
Specifications of 2.5 Ton Diesel Forklift
| Womi Heavy Industry – 2.5-ton Internal Combustion Balanced Forklift Specifications | ||
|---|---|---|
| Basic Parameters | ||
| Manufacturer | Womi Heavy Industry | |
| Model | CPC25 | CPCD25 |
| Power Type | Diesel | |
| Rated Load Capacity | 2500 kg | |
| Load Center | 500 mm | |
| Driving Method | Sit-on type | |
| Dimensions | ||
| Maximum Lifting Height | 3000 mm | |
| Mast Height (Fork on ground, mast vertical) | 2070 mm | |
| Maximum Fork Height (with load guard) | 4030 mm | |
| Free Lift Height | 30 mm | |
| Overall Height (with overhead guard) | 2120-2160 mm | |
| Minimum Ground Clearance (at mast) | 115 mm | |
| Distance from seat to overhead guard | 1000 mm | |
| Tow Pin Height | 290 mm | |
| Load Guard Height (from fork surface) | 1000 mm | |
| Overall Length (with/without forks) | 3685/2615 mm | |
| Wheelbase | 1650 mm | |
| Front Overhang | 460 mm | |
| Rear Overhang | 533 mm | |
| Overall Width | 1160 mm | |
| Wheel Track (Front/Rear) | 1000/970 mm | |
| Fork Spread (Outside) (Max/Min) | 1060/244 mm | |
| Minimum Turning Radius | 2390 mm | |
| Mast Tilt Angle | 6°/12° | |
| Fork Dimensions | 40X122X1070 mm | |
| Performance | ||
| Maximum Travel Speed (Loaded/Unloaded) | 18/19 km/h | |
| Lifting Speed (Loaded/Unloaded) | 440/480 mm/s | |
| Lowering Speed (Loaded/Unloaded) | 440/430 mm/s | |
| Maximum Traction Force (Loaded/Unloaded) | 18.1/13.4 kN | 19.6/16.2 kN |
| Maximum Gradeability (Loaded/Unloaded) | 15/20 % | |
| Weight | ||
| Total Weight | 3935 kg | |
| Wheels and Tires | ||
| Number of Wheels X=Drive Wheels (Front/Rear) | 2X/2 | |
| Tire Type (Front/Rear) | Pneumatic tire | |
| Tire Size (Front/Rear) | 28X9-15-14PR/6.50-10-10PR | |
| Brakes | ||
| Service Brake | Mechanical-Pedal type | |
| Parking Brake | Mechanical-Hand Lever | |
| Power System | ||
| Battery (Voltage/Capacity) | 12V/80Ah | |
| Engine Manufacturer/Model | Quanchai V29-50V42 | |
| Engine Rated Power | 36.8 kW/2500 rpm | |
| Engine Rated Torque | 157 NM/1800 rpm | |
| Cylinders-Bore X Stroke | 4-93X105 | |
| Engine Displacement | 2.85 L | |
| Engine Fuel Tank Capacity | 50 L | |
| Emission Standard | China IV | |
| Transmission Gears (Forward/Reverse Type) | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M | |
