Overview

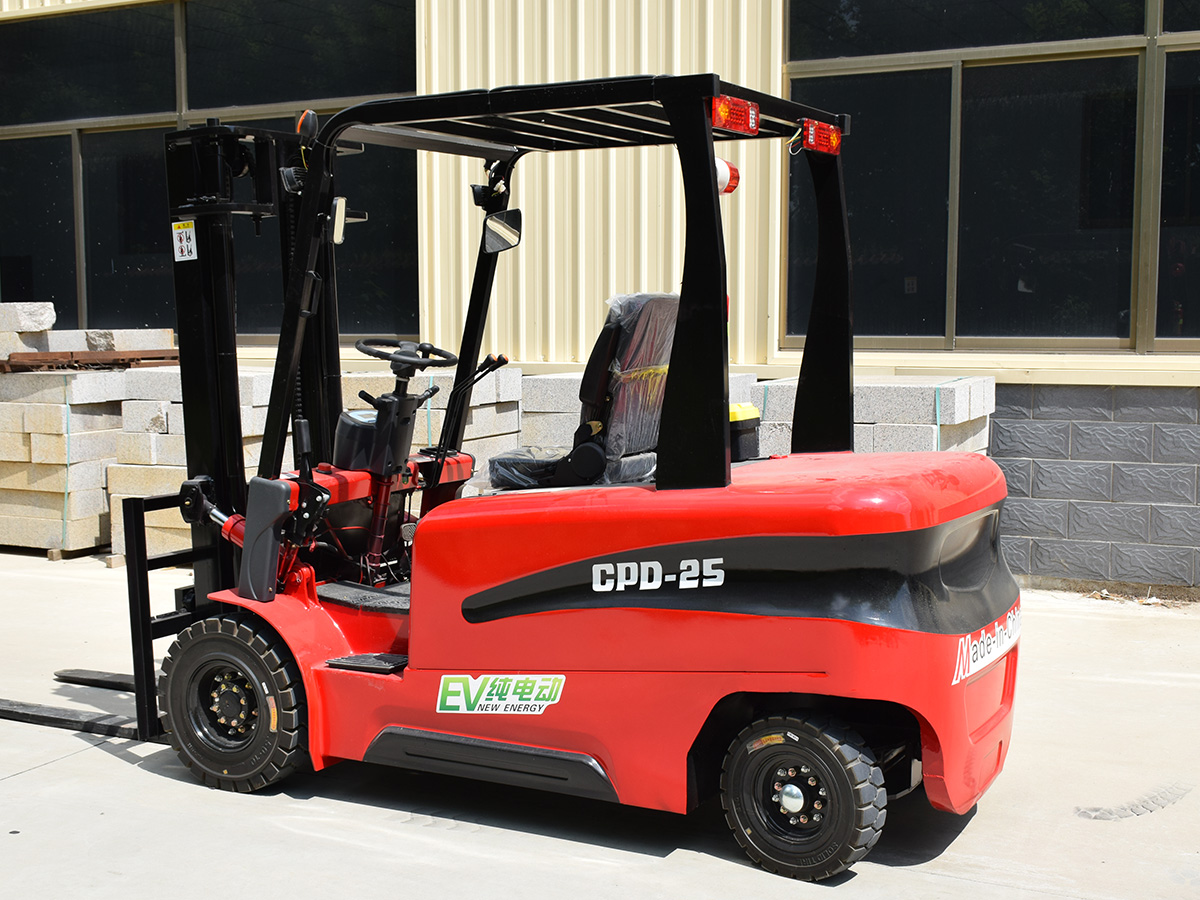

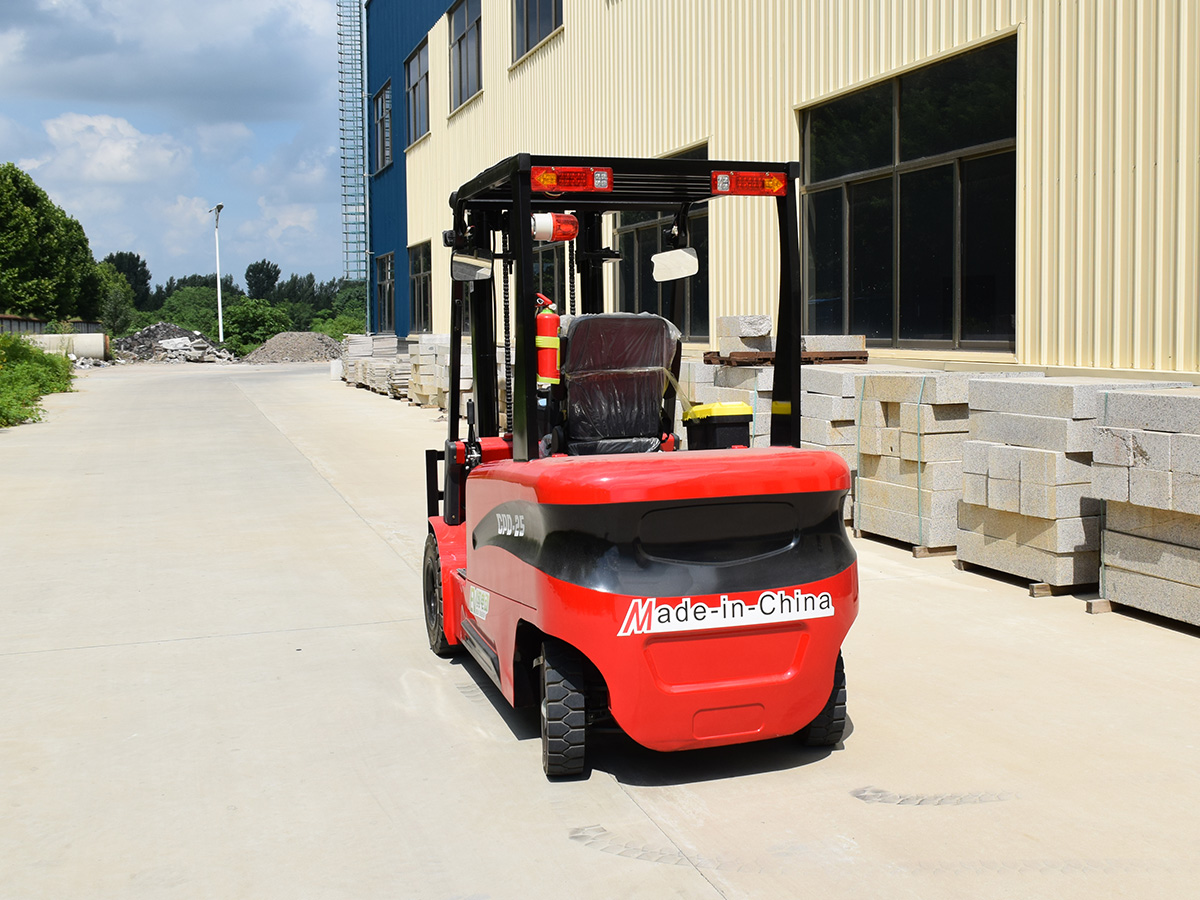

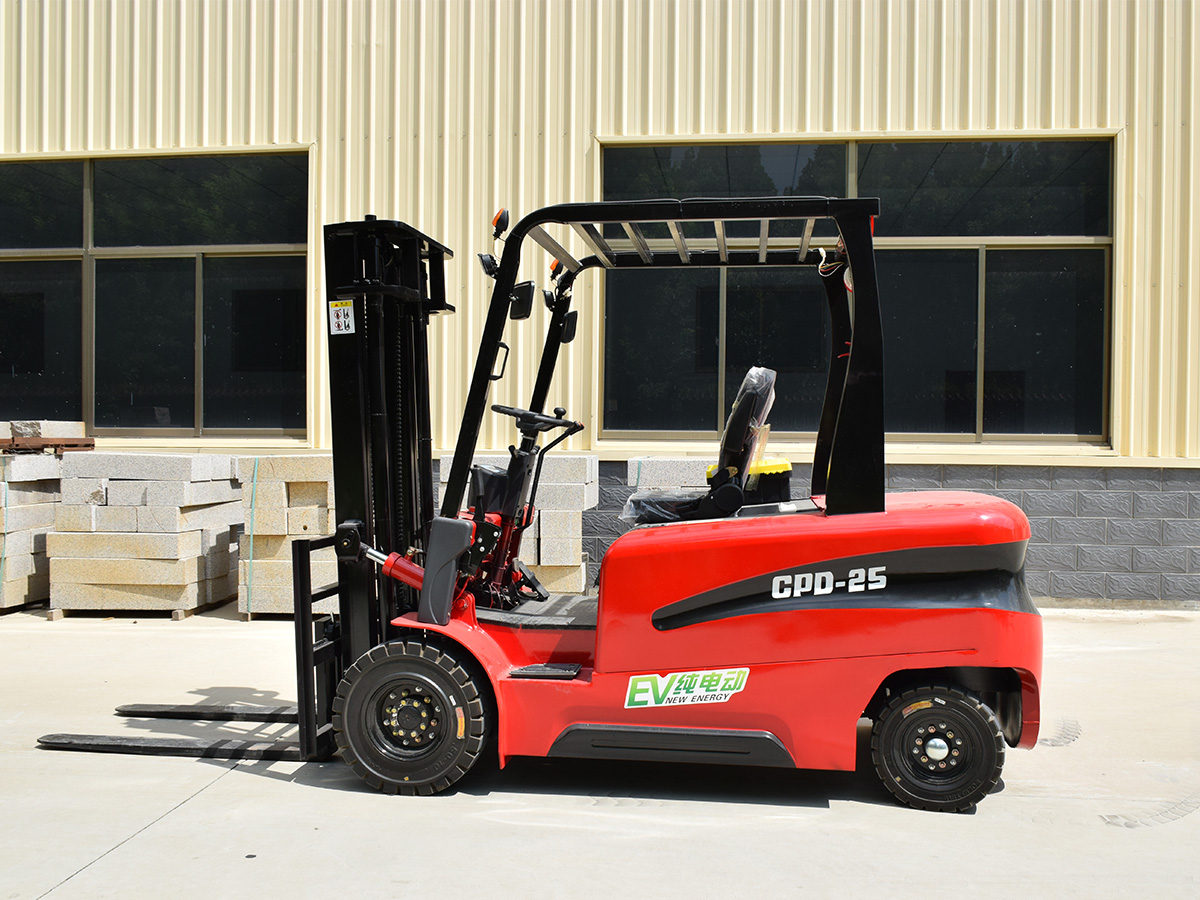

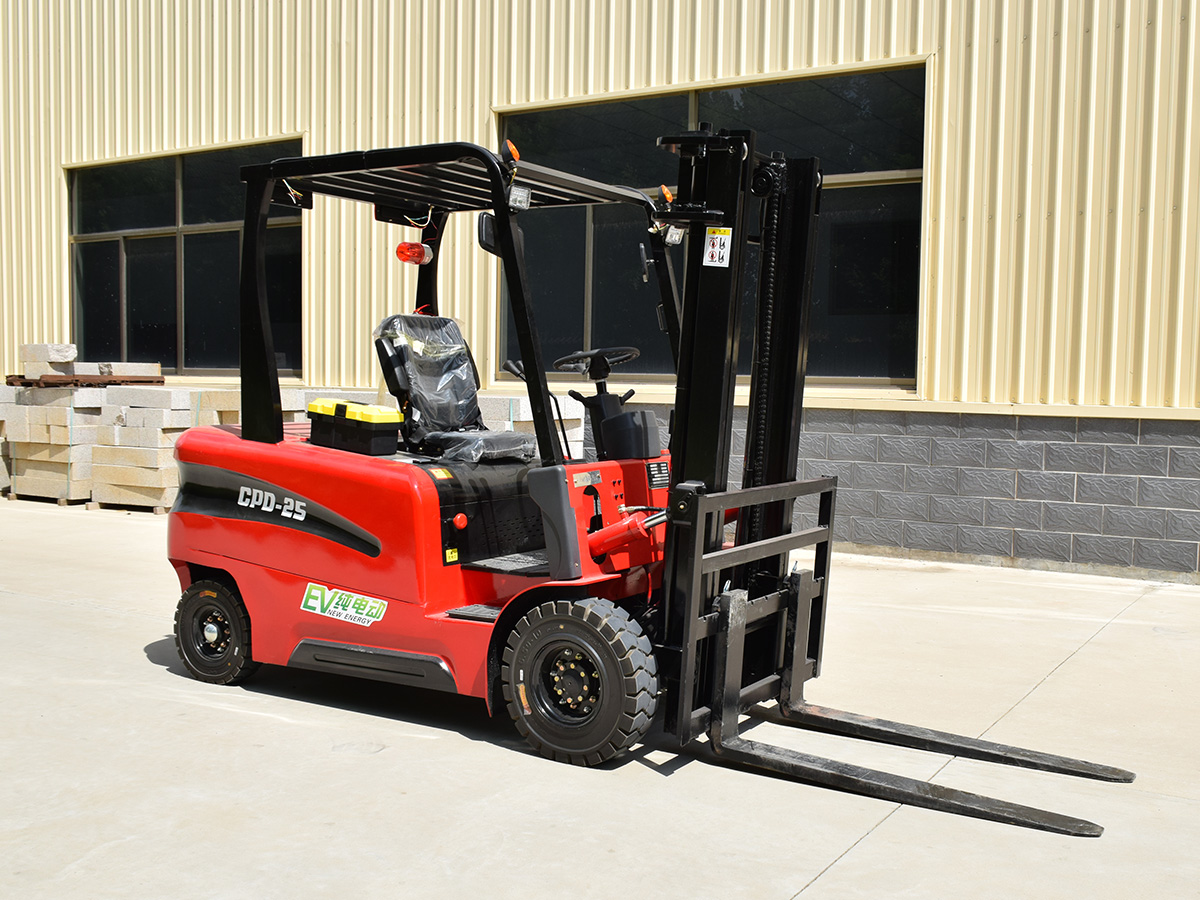

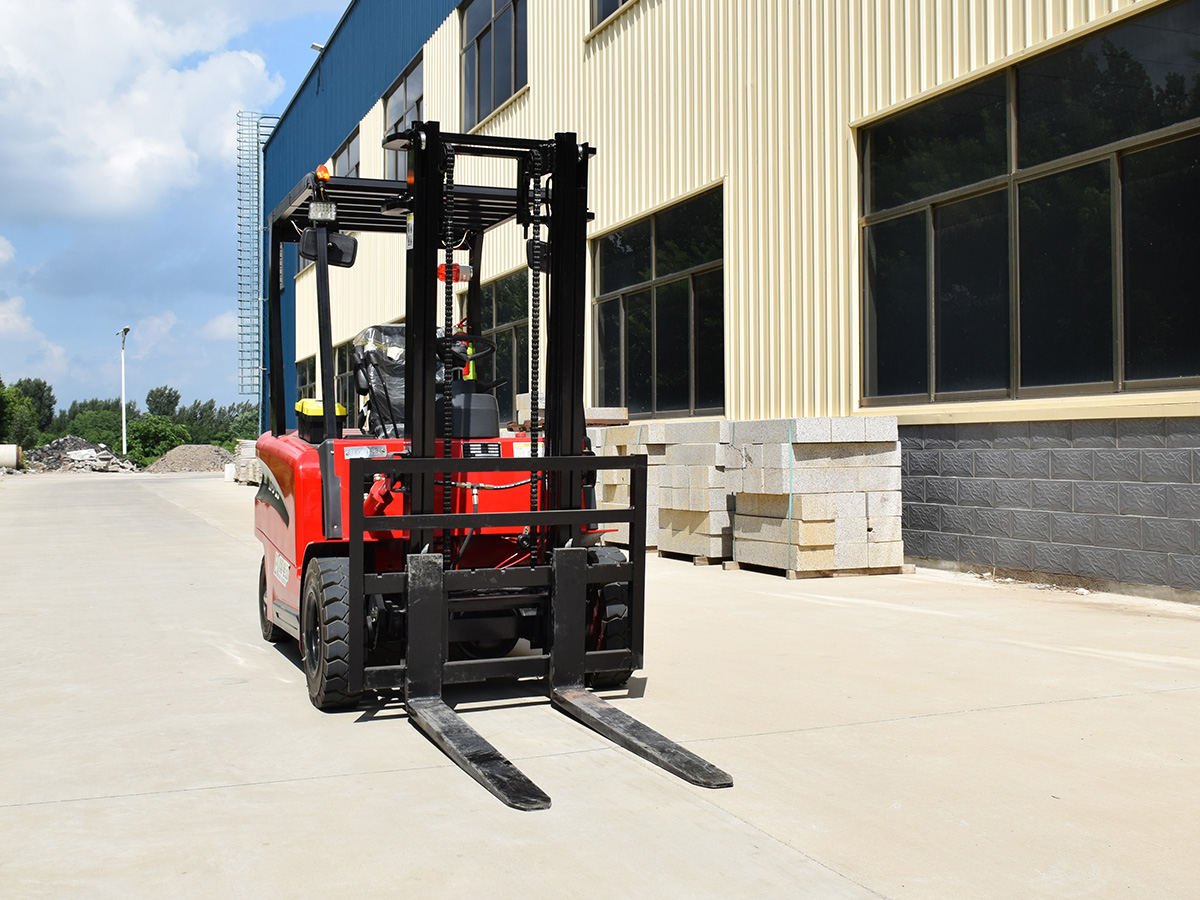

The 2.5 ton electric forklift is designed for medium to heavy-duty material handling in warehouses, factories, logistics hubs, and distribution centers. With a rated capacity of 2500 kg, this forklift provides powerful lifting performance, smooth maneuverability, and zero emissions. It is ideal for pallet handling, stacking goods, loading containers, and transporting materials in demanding industrial environments.
Equipped with an advanced battery system, ergonomic design, and reliable AC motor, the 2.5 ton electric forklift ensures long service life, reduced operating costs, and eco-friendly operation both indoors and outdoors on paved surfaces.
Features
✅ 2500kg load capacity for medium to heavy-duty applications.
✅ Compact design and small turning radius for narrow aisles.
✅ Battery options: lead-acid or lithium-ion with fast charging.
✅ AC drive motor with regenerative braking for energy efficiency.
✅ Ergonomic operator cabin with adjustable seat and wide visibility.
✅ Reinforced chassis and durable mast for long-term reliability.
✅ Safety features: overload protection, LED lights, horn, and emergency stop.
✅ Customizable forks, lift heights, and optional attachments available.
Product Parameters
| Rated lifting capacity(kg) | 2500 |
| Load center distance(mm) | 500 |
| With fork(mm) | 3650 |
| Without fork(mm) | 2600 |
| Full width(mm) | 1200 |
| No lifting of the mast height(mm) | 2100 |
| Height of the roof guard(mm) | 2100 |
| Maximum height during operation(m) | 3-6 |
| Distance from the seat surface to the ro(mm) | 970 |
| Front(mm) | 1200 |
| Suspension travel(mm) | 327 |
| Rear suspension travel(mm) | 313 |
| Front wheel track(mm) | 840 |
| Rear wheel track(mm) | 741 |
| Minimum ground clearance(mm) | 150 |
| Maximum lifting height(m) | 3-6 |
| Lift lever adjustment range(mm) | 1040 |
| Minimum turning radius (outer side)(mm) | 2315 |
| Minimum right-angle passage width(mm) | 3995 |
| Tire size (front)(mm) | 650-10 |
| Tire size (rear)(mm) | 500-8 |
| Lead-acid battery voltage/capacity(v/ah) | Lithium battery |
| Drive motor power(kw) | 4 |
| Oil pump motor power(kw) | 5 |
