Overview

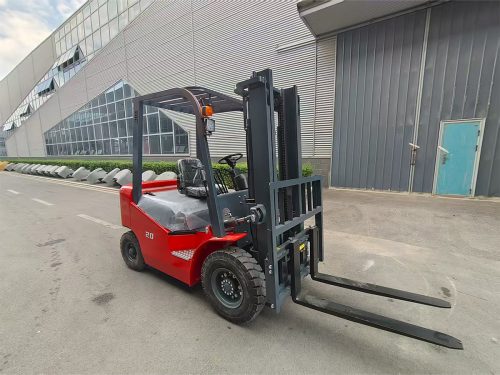

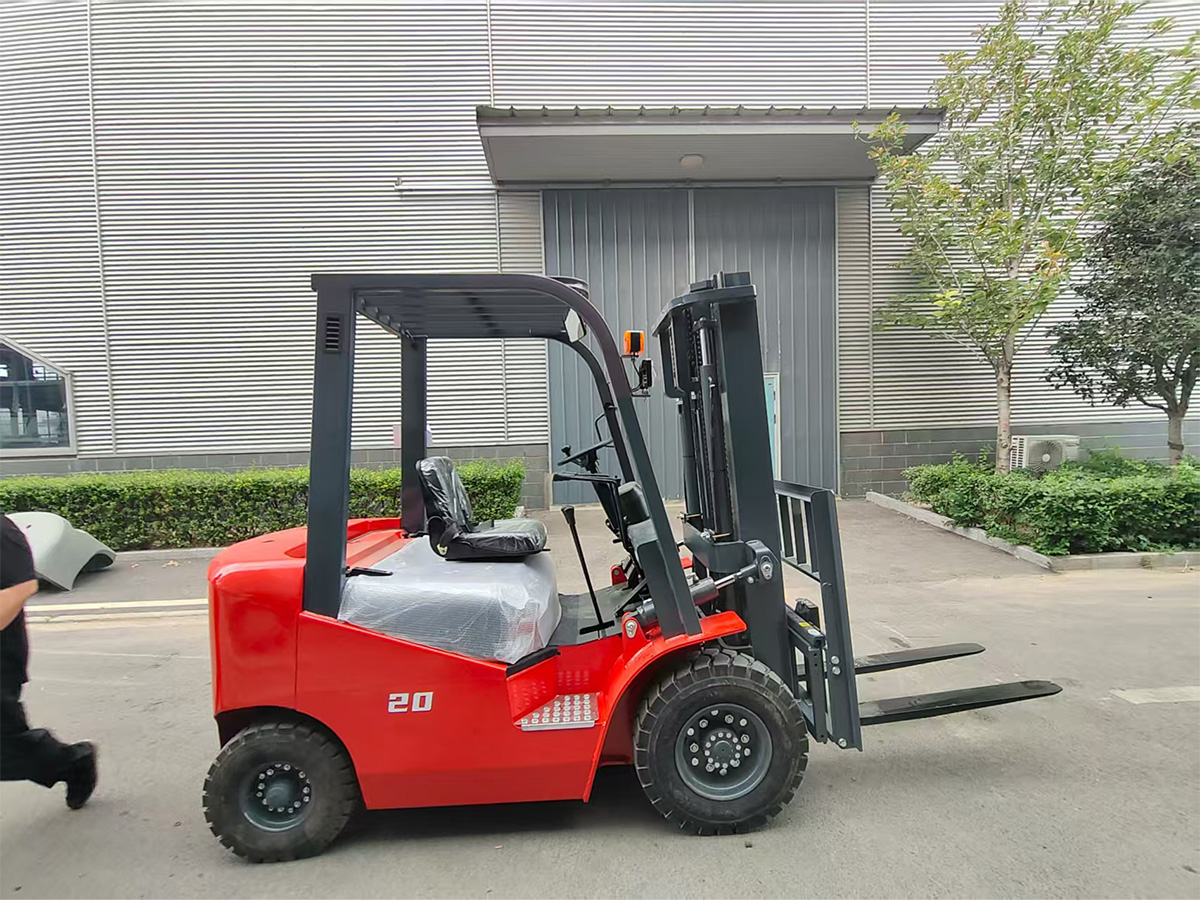

The 2 Ton Diesel Forklift (also listed as 2T diesel forklift or 2000kg diesel forklift) is a robust, compact workhorse tailored for companies that require durable outdoor and indoor lifting capabilities. Built for warehouses, logistics yards, construction sites, and agricultural operations, this model balances lifting capacity with maneuverability and fuel efficiency. Buyers searching for “2 ton diesel forklift for sale”, “2 ton forklift price” or “2 ton diesel forklift supplier” will find factory-direct pricing, multiple mast and attachment options, and reliable after-sales support.
Manufactured to meet global quality standards, the 2T diesel forklift is designed for heavy-duty daily cycles while remaining economical. Whether your priority is a new 2 ton forklift for warehouse pallet handling or a used 2 ton diesel forklift for short-term project needs, our product line covers both scenarios with tailored configurations.
Key Features
Rated capacity: 2,000 kg (2 Ton). Ideal for standard pallet loads and medium-duty handling.
Engine: Fuel-efficient diesel engine, commonly 3- or 4-cylinder options depending on market, tuned for torque and low-end power.
Mast options: Choose 2-stage or 3-stage mast configurations for lift heights from 2500 mm to 6000 mm to suit rack storage or container loading.
Transmission: Power shift or torque converter transmissions available; designed for heavy start/stop cycles in logistics operations.
Tires: Pneumatic or solid (cushion) tires—pneumatic recommended for outdoor and rough terrains; solid tires for indoor, hard-surface warehouses.
Attachments available: side shifter, fork positioner, paper roll clamp, bale clamp, rotator, quick coupler—perfect for industry-specific needs.
Cab options: Open operator platform or enclosed cabin with HVAC and sound insulation for comfort and long shifts.
Safety: Load backrest, LED work lights, reversing alarm or camera, seat belt interlock and overload protection systems.
Specifications
| Womi Heavy Industry – 2-ton Internal Combustion Balanced Forklift Specifications | ||
|---|---|---|
| Basic Parameters | ||
| Manufacturer | Womi Heavy Industry | |
| Model | CPC20 | CPCD20 |
| Power Type | Diesel | |
| Rated Load Capacity | 2000 kg | |
| Load Center | 500 mm | |
| Driving Method | Sit-on type | |
| Dimensions | ||
| Maximum Lifting Height | 3000 mm | |
| Mast Height (Fork on ground, mast vertical) | 2000 mm | |
| Maximum Fork Height (with load guard) | 4030 mm | |
| Free Lift Height | 30 mm | |
| Overall Height (with overhead guard) | 2120 mm | |
| Minimum Ground Clearance (at mast) | 115 mm | |
| Distance from seat to overhead guard | 1000 mm | |
| Tow Pin Height | 290 mm | |
| Load Guard Height (from fork surface) | 1000 mm | |
| Overall Length (with/without forks) | 3685/2615 mm | |
| Wheelbase | 1650 mm | |
| Front Overhang | 460 mm | |
| Rear Overhang | 533 mm | |
| Overall Width | 1160 mm | |
| Wheel Track (Front/Rear) | 1000/970 mm | |
| Fork Spread (Outside) (Max/Min) | 1060/244 mm | |
| Minimum Turning Radius | 2390 mm | |
| Mast Tilt Angle | 6°/12° | |
| Fork Dimensions | 40X122X1070 mm | |
| Performance | ||
| Maximum Travel Speed (Loaded/Unloaded) | 18/19 km/h | |
| Lifting Speed (Loaded/Unloaded) | 440/480 mm/s | |
| Lowering Speed (Loaded/Unloaded) | 440/430 mm/s | |
| Maximum Traction Force (Loaded/Unloaded) | 17.5/13.4 kN | 19.5/15.5 kN |
| Maximum Gradeability (Loaded/Unloaded) | 15/20 % | |
| Weight | ||
| Total Weight | 3300 kg | |
| Wheels and Tires | ||
| Number of Wheels X=Drive Wheels (Front/Rear) | 2X/2 | |
| Tire Type (Front/Rear) | Pneumatic tire | |
| Tire Size (Front/Rear) | 28X9-15-14PR/6.50-10-10PR | |
| Brakes | ||
| Service Brake | Mechanical-Pedal type | |
| Parking Brake | Mechanical-Hand Lever | |
| Power System | ||
| Battery (Voltage/Capacity) | 12V/80Ah | |
| Engine Manufacturer/Model | Quanchai V29-50V42 | |
| Engine Rated Power | 36.8 kW/2500 rpm | |
| Engine Rated Torque | 157 NM/1800 rpm | |
| Cylinders-Bore X Stroke | 4-93X105 | |
| Engine Displacement | 2.85 L | |
| Engine Fuel Tank Capacity | 50 L | |
| Emission Standard | China IV | |
| Transmission Gears (Forward/Reverse Type) | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M | |
