Overview

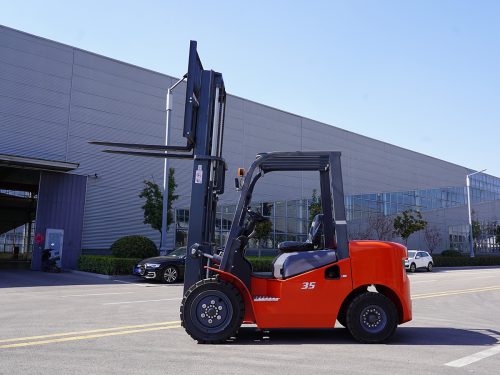

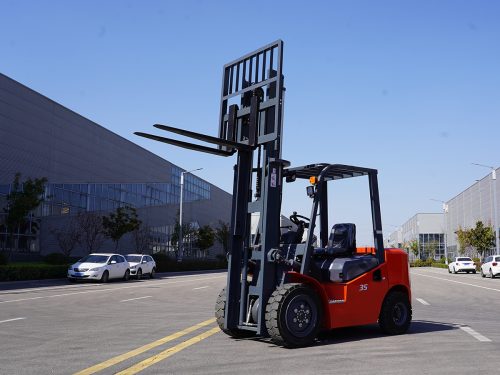

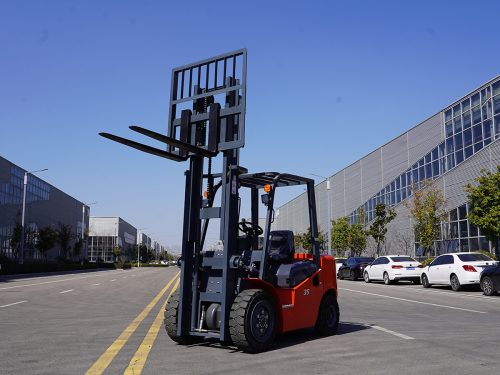

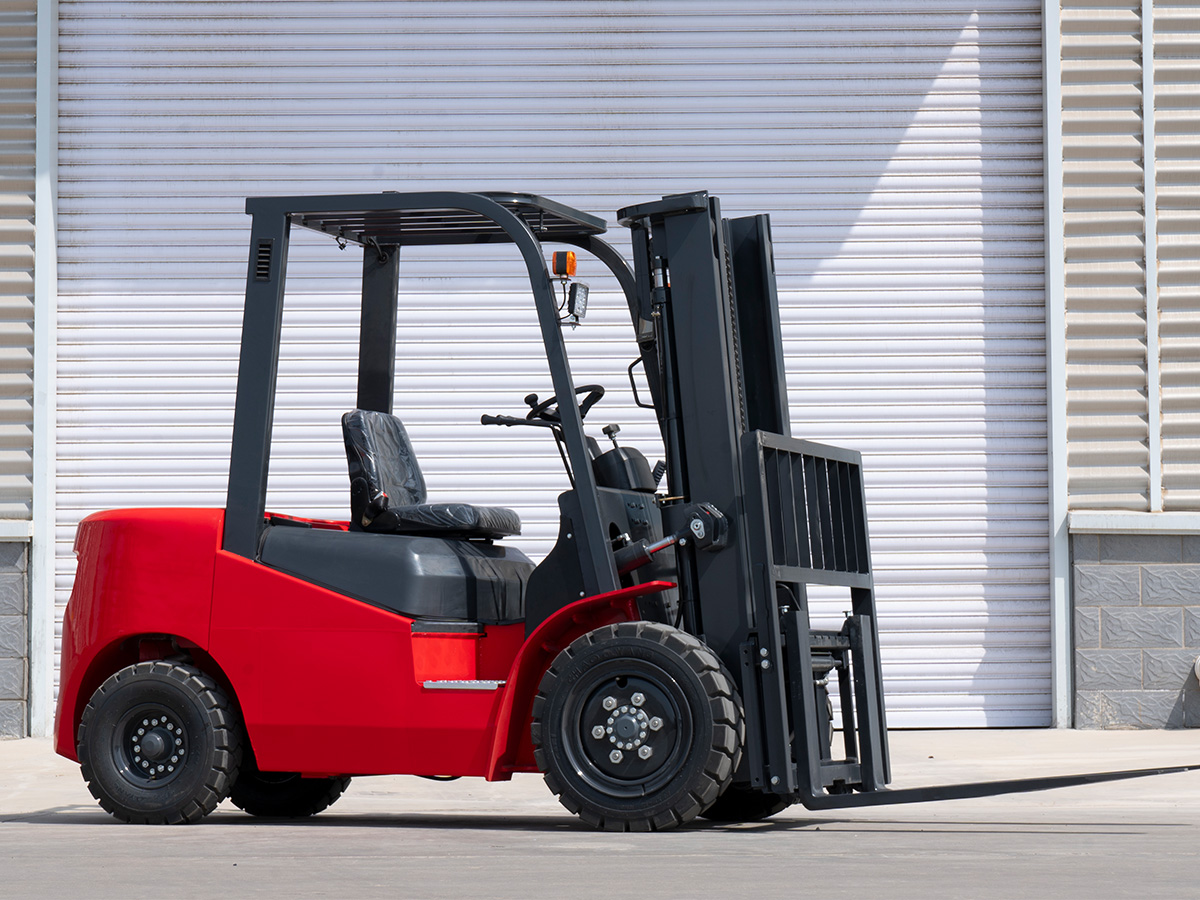

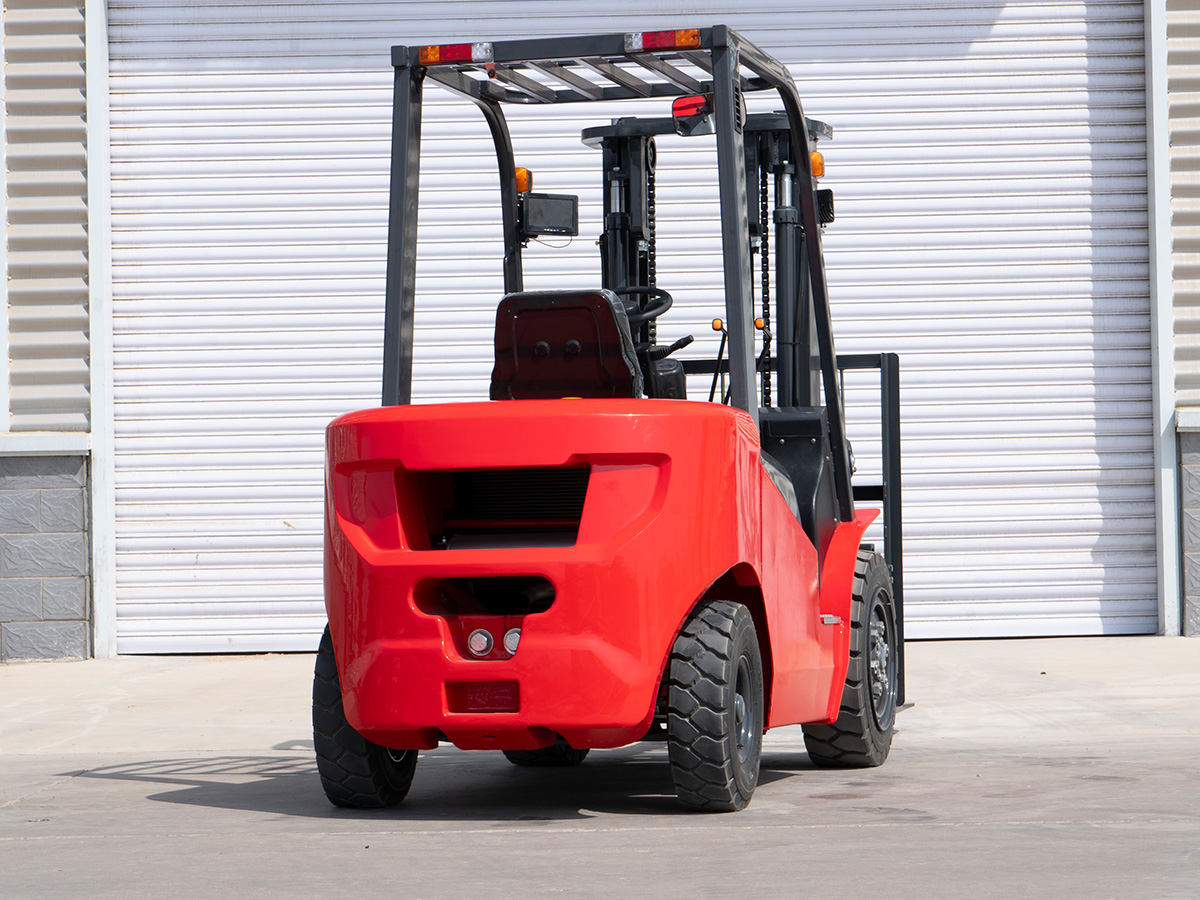

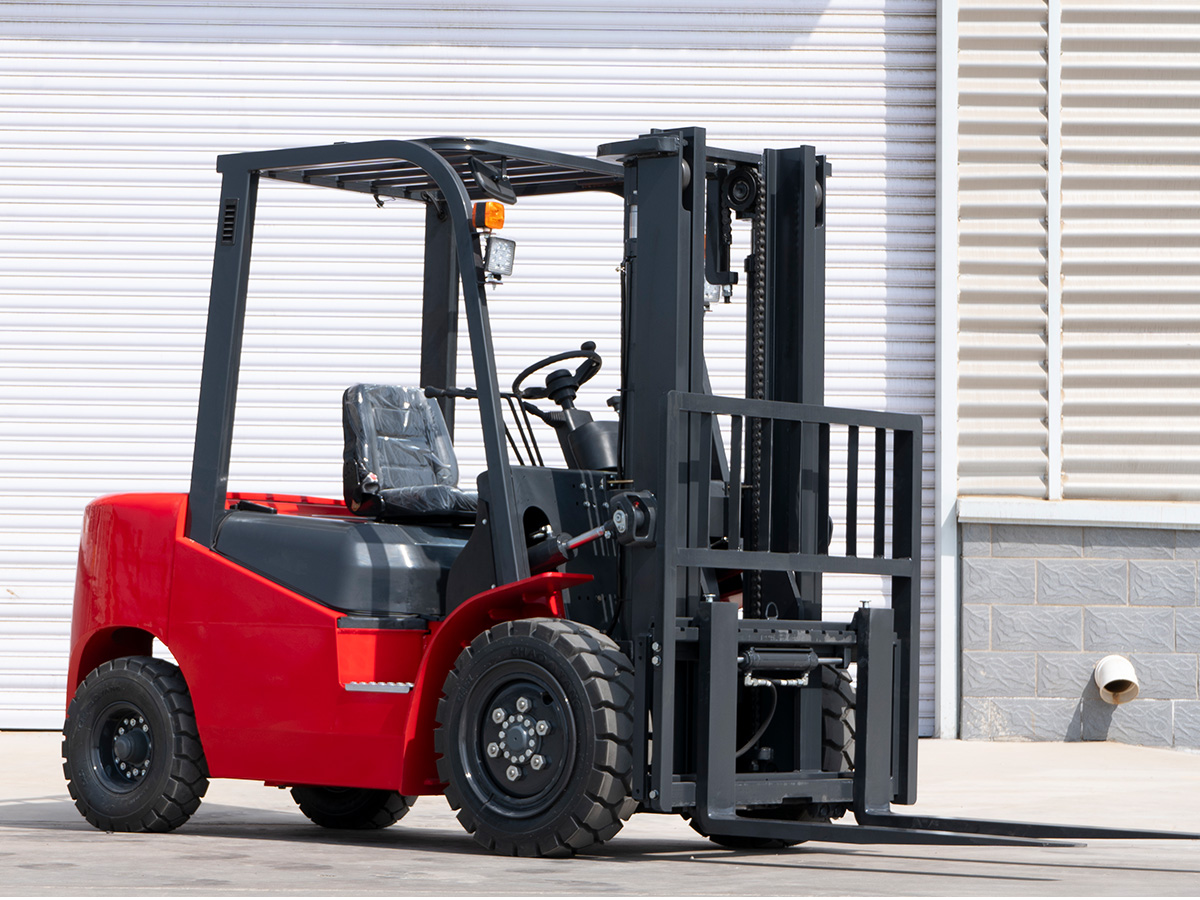

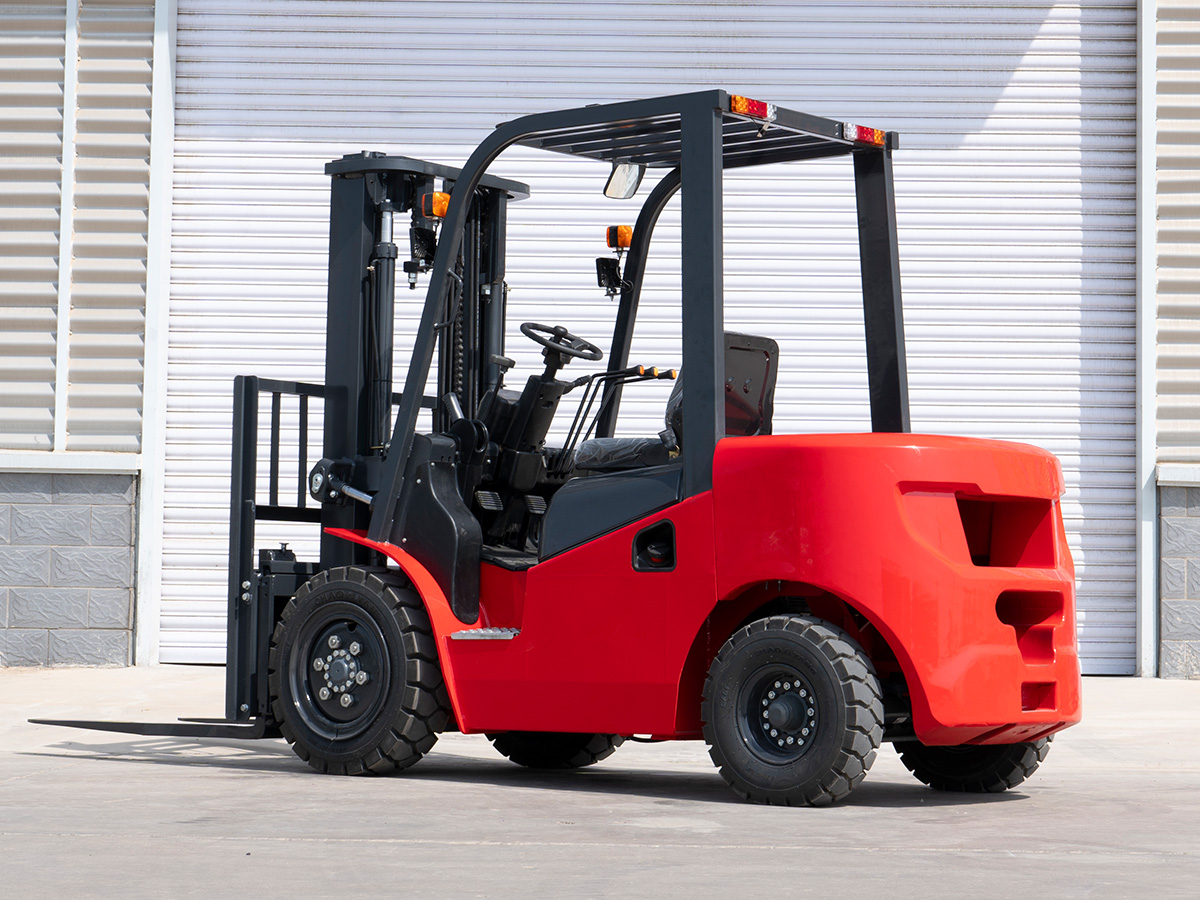

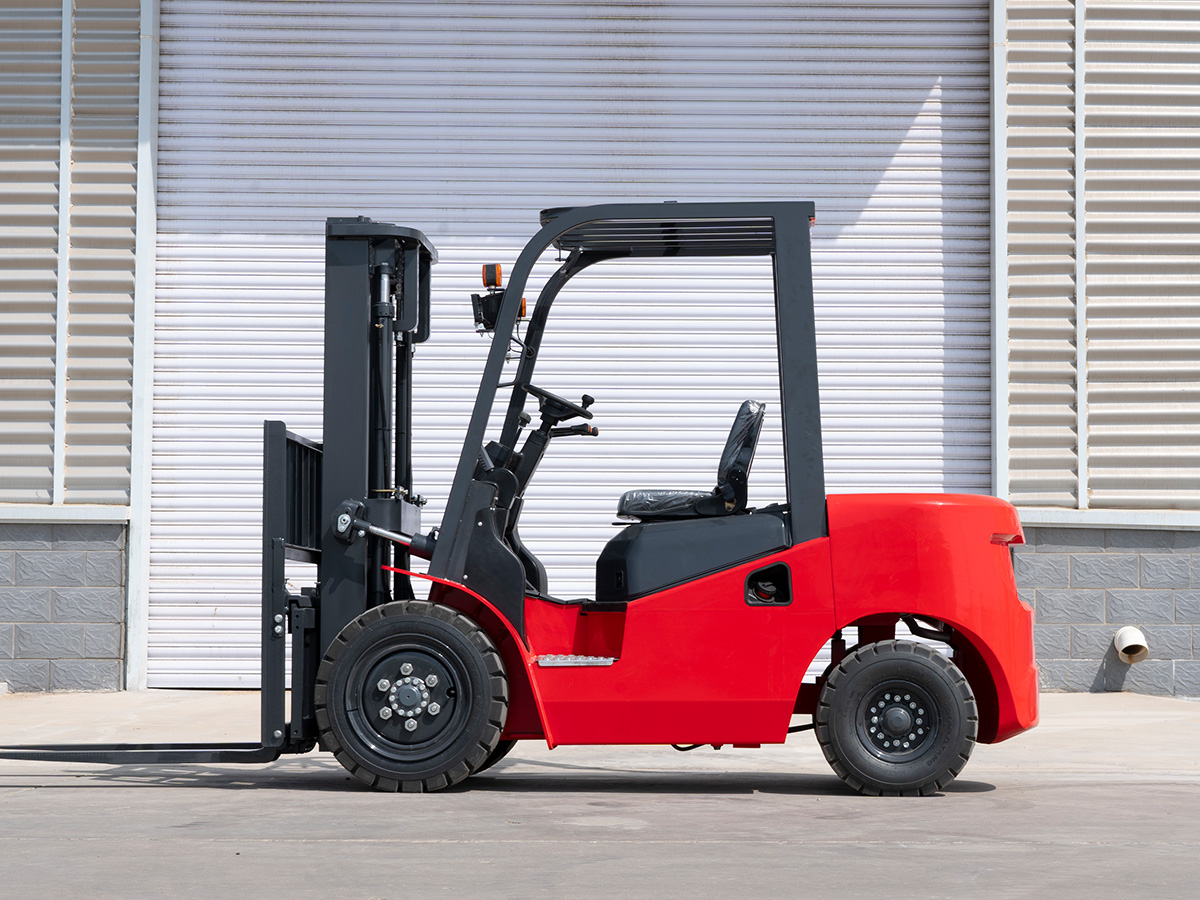

The 3 Ton Diesel Forklift is engineered for durability and high performance. Its 3000kg lifting capacity, ergonomic design, and versatility make it ideal for construction sites, warehouses, distribution centers, and farming operations. Compact yet powerful, it combines efficiency and reliability for demanding tasks.
Keywords included: 3 ton diesel forklift, 3 ton forklift machine, construction mini digger, small excavator.
Features
High-performance diesel engine ensuring fuel efficiency and reliability.
Adjustable mast height ranging from 3000mm to 6000mm to meet diverse lifting needs.
Ergonomic cabin design with operator comfort and safety in mind.
Durable tires for all-terrain operation and extended lifespan.
Optional attachments available: side shifter, paper roll clamp, fork extensions, multi-purpose clamps.
Compact and maneuverable, ideal for tight warehouse aisles.
Easy maintenance with accessible engine and components.
Integrated safety systems including anti-tip and load sensors.
Specifications
| Womi Heavy Industry – 3-ton Internal Combustion Balanced Forklift Specifications | ||
|---|---|---|
| Basic Parameters | ||
| Manufacturer | Womi Heavy Industry | |
| Model | CPC30 | CPCD30 |
| Power Type | Diesel | |
| Rated Load Capacity | 3000 kg | |
| Load Center | 500 mm | |
| Driving Method | Sit-on type | |
| Dimensions | ||
| Maximum Lifting Height | 3000 mm | |
| Mast Height (Fork on ground, mast vertical) | 2070 mm | |
| Maximum Fork Height (with load guard) | 4220 mm | |
| Free Lift Height | 30 mm | |
| Overall Height (with overhead guard) | 2160 mm | |
| Minimum Ground Clearance (at mast) | 135 mm | |
| Distance from seat to overhead guard | 1000 mm | |
| Tow Pin Height | 310 mm | |
| Load Guard Height (from fork surface) | 1215 mm | |
| Overall Length (with/without forks) | 3913/2693 mm | |
| Wheelbase | 1770 mm | |
| Front Overhang | 460 mm | |
| Rear Overhang | 533 mm | |
| Overall Width | 1225 mm | |
| Wheel Track (Front/Rear) | 1000/970 mm | |
| Fork Spread (Outside) (Max/Min) | 1060/244 mm | |
| Minimum Turning Radius | 2390 mm | |
| Mast Tilt Angle | 6°/12° | |
| Fork Dimensions | 45X122X1220 mm | |
| Performance | ||
| Maximum Travel Speed (Loaded/Unloaded) | 18/19 km/h | |
| Lifting Speed (Loaded/Unloaded) | 440/480 mm/s | |
| Lowering Speed (Loaded/Unloaded) | 440/430 mm/s | |
| Maximum Traction Force (Loaded/Unloaded) | 17.5/13.4 kN | 19.5/15.5 kN |
| Maximum Gradeability (Loaded/Unloaded) | 15/20 % | |
| Weight | ||
| Total Weight | 4200 kg | |
| Wheels and Tires | ||
| Number of Wheels X=Drive Wheels (Front/Rear) | 2X/2 | |
| Tire Type (Front/Rear) | Pneumatic tire | |
| Tire Size (Front/Rear) | 28X9-15-14PR/6.50-10-10PR | |
| Brakes | ||
| Service Brake | Mechanical-Pedal type | |
| Parking Brake | Mechanical-Hand Lever | |
| Power System | ||
| Battery (Voltage/Capacity) | 12V/80Ah | |
| Engine Manufacturer/Model | Quanchai V29-50V42 | |
| Engine Rated Power | 36.8 kW/2500 rpm | |
| Engine Rated Torque | 157 NM/1800 rpm | |
| Cylinders-Bore X Stroke | 4-93X105 | |
| Engine Displacement | 2.85 L | |
| Engine Fuel Tank Capacity | 50 L | |
| Emission Standard | China IV | |
| Transmission Gears (Forward/Reverse Type) | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M | |
