Overview

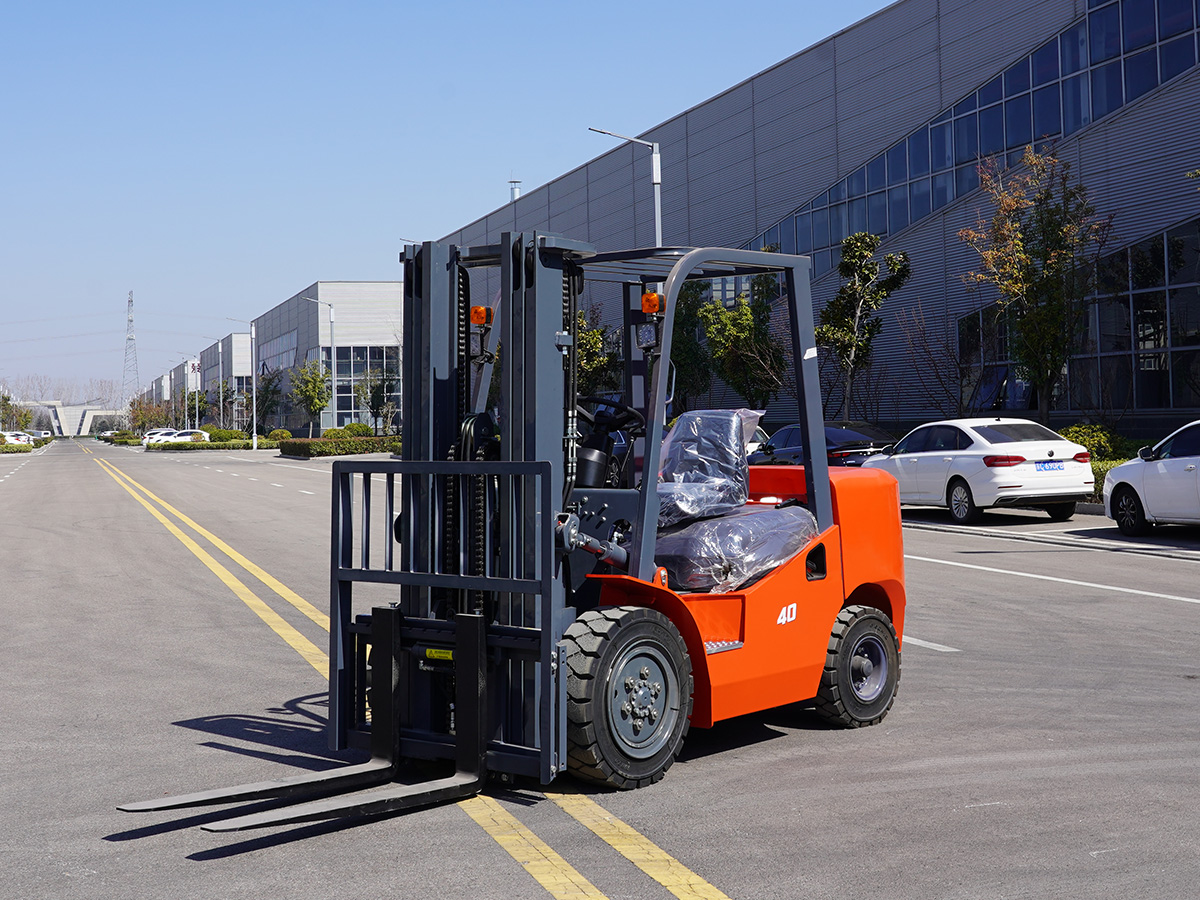

Our 4 ton diesel forklift is a reliable, high-performance material handling solution for construction, warehousing, and logistics industries. Designed for durability, fuel efficiency, and safety, this diesel forklift provides superior lifting capacity while minimizing operational costs. Optional attachments make it adaptable for various industrial tasks.
Key Features
Heavy-duty 4 ton lifting capacity for industrial use
Efficient diesel engine with low emissions
Ergonomic operator cabin with advanced safety features
Optional attachments: forks, clamps, rotators, and side shifters
Compact design for maneuverability in tight spaces
Easy maintenance and long service life
Specifications
| Womi Heavy Industry – 4-ton Internal Combustion Balanced Forklift Specifications | ||
|---|---|---|
| Basic Parameters | ||
| Manufacturer | Womi Heavy Industry | |
| Model | CPC38 | CPCD8 |
| Power Type | Diesel | |
| Rated Load Capacity | 4000 kg | |
| Load Center | 500 mm | |
| Driving Method | Sit-on type | |
| Dimensions | ||
| Maximum Lifting Height | 3000 mm | |
| Mast Height (Fork on ground, mast vertical) | 2150 mm | |
| Maximum Fork Height (with load guard) | 4220 mm | |
| Free Lift Height | 30 mm | |
| Overall Height (with overhead guard) | 2160 mm | |
| Minimum Ground Clearance (at mast) | 148 mm | |
| Distance from seat to overhead guard | 1000 mm | |
| Tow Pin Height | 323 mm | |
| Load Guard Height (from fork surface) | 1215 mm | |
| Overall Length (with/without forks) | 4063/2843 mm | |
| Wheelbase | 1770 mm | |
| Front Overhang | 460 mm | |
| Rear Overhang | 533 mm | |
| Overall Width | 1290 mm | |
| Wheel Track (Front/Rear) | 1000/970 mm | |
| Fork Spread (Outside) (Max/Min) | 1060/250 mm | |
| Minimum Turning Radius | 2550 mm | |
| Mast Tilt Angle | 6°/12° | |
| Fork Dimensions | 50X125X1220 mm | |
| Performance | ||
| Maximum Travel Speed (Loaded/Unloaded) | 18/19 km/h | |
| Lifting Speed (Loaded/Unloaded) | 440/480 mm/s | |
| Lowering Speed (Loaded/Unloaded) | 440/430 mm/s | |
| Maximum Traction Force (Loaded/Unloaded) | 18.1/13.4 kN | 19.6/16.2 kN |
| Maximum Gradeability (Loaded/Unloaded) | 15/20 % | |
| Weight | ||
| Total Weight | 4800 kg | 4850 kg |
| Wheels and Tires | ||
| Number of Wheels X=Drive Wheels (Front/Rear) | 2X/2 | |
| Tire Type (Front/Rear) | Pneumatic tire | |
| Tire Size (Front/Rear) | 28X9-15-14PR/6.50-10-10PR | |
| Brakes | ||
| Service Brake | Mechanical-Pedal type | |
| Parking Brake | Mechanical-Hand Lever | |
| Power System | ||
| Battery (Voltage/Capacity) | 12V/80Ah | |
| Engine Manufacturer/Model | Quanchai Domestic Common Rail | |
| Engine Rated Power | 36.8 kW/2500 rpm | |
| Engine Rated Torque | 157 NM/1800 rpm | |
| Cylinders-Bore X Stroke | 4-93X105 | |
| Engine Displacement | 2.85 L | |
| Engine Fuel Tank Capacity | 50 L | |
| Emission Standard | China IV | |
| Transmission Gears (Forward/Reverse Type) | 1-1 Power Shift T/M/ 2-2 Manual Shift T/M | |
Friendly reminder: 4 Ton Diesel Forklift configurations vary by application. Fill the form for a quote and solution.
