Overview

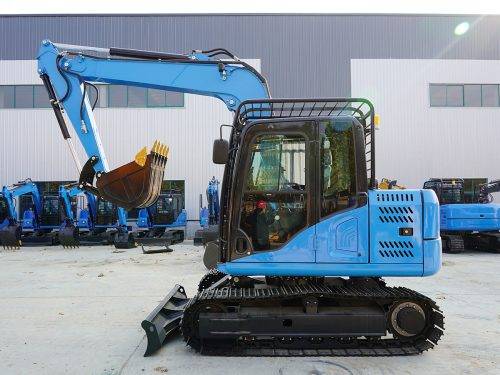

The 7.5 ton mini excavator—often called a compact excavator, mini digger, or small excavator—bridges the gap between light mini machines and full-size units. It delivers high breakout force, stable lifting capacity, and confident swing performance while keeping overall dimensions compact enough for urban jobs, residential sites, and tight access projects.

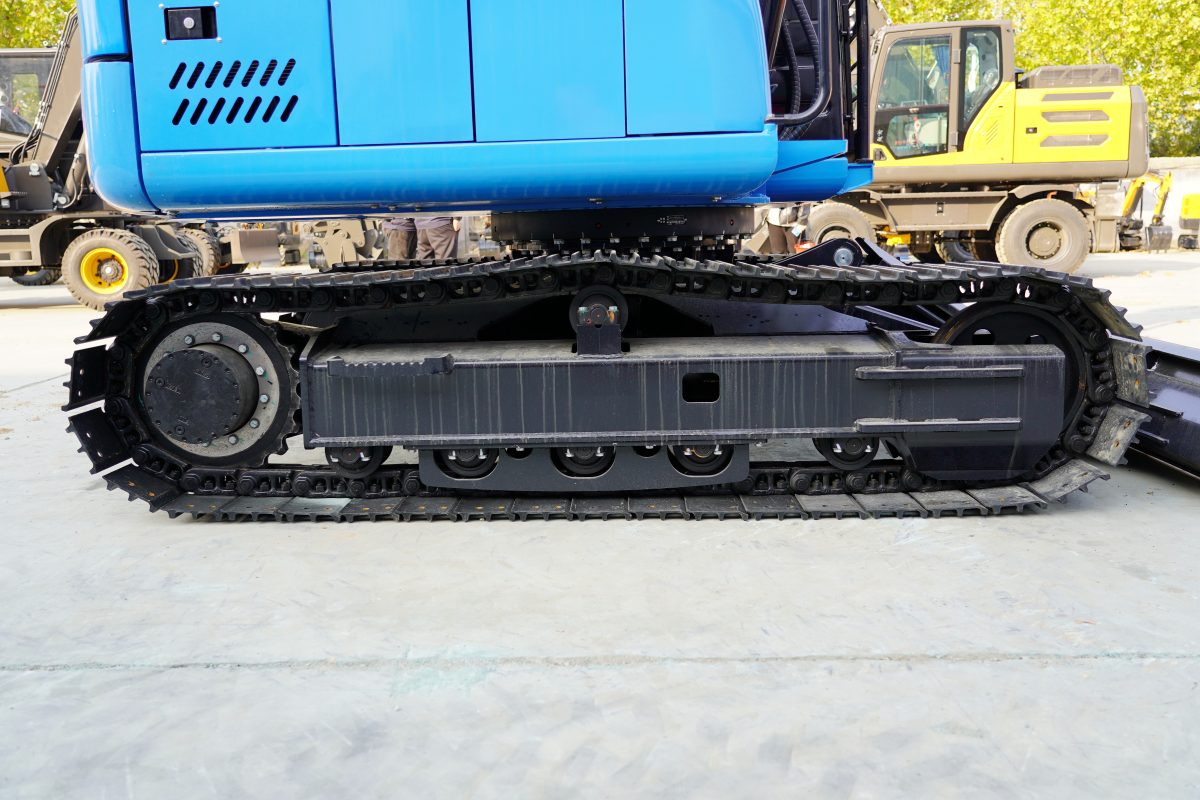

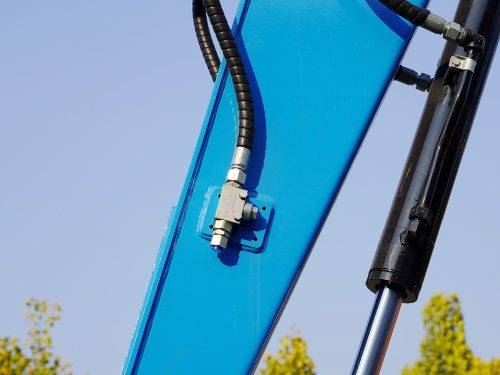

If you are comparing options and investigating the 7.5 ton mini excavator price or availability for sale, this size class offers excellent productivity per liter of fuel. With a rugged crawler undercarriage, load-sensing hydraulics, and attachment-ready auxiliary lines, it takes on trenching, footings, grading, utility installation, and light demolition using buckets, breakers, augers, thumbs, and more.
Owner-operators and rental fleets choose this model for its balance of power and transportability. It’s easier to move than large excavators, yet it provides the reach and stability smaller minis can’t match—ideal for contractors who need one machine to handle multi-trade tasks with fewer mobilizations.
7.5 Ton Mini Excavator Specifications
Below are reference specifications. Final specs vary by engine emission tier, cab/canopy, tracks, and attachment package. Request a region-specific data sheet for procurement.
| Specification | Value |
|---|---|
| Working weight (kg) | 7500 |
| Bucket capacity (m³) | 0.28 |
| Swing speed (rpm) | 0-11 |
| Gradeability (°) | 35 |
| Max. bucket digging force (kN) | 56 |
| Max. arm digging force (kN) | 38 |

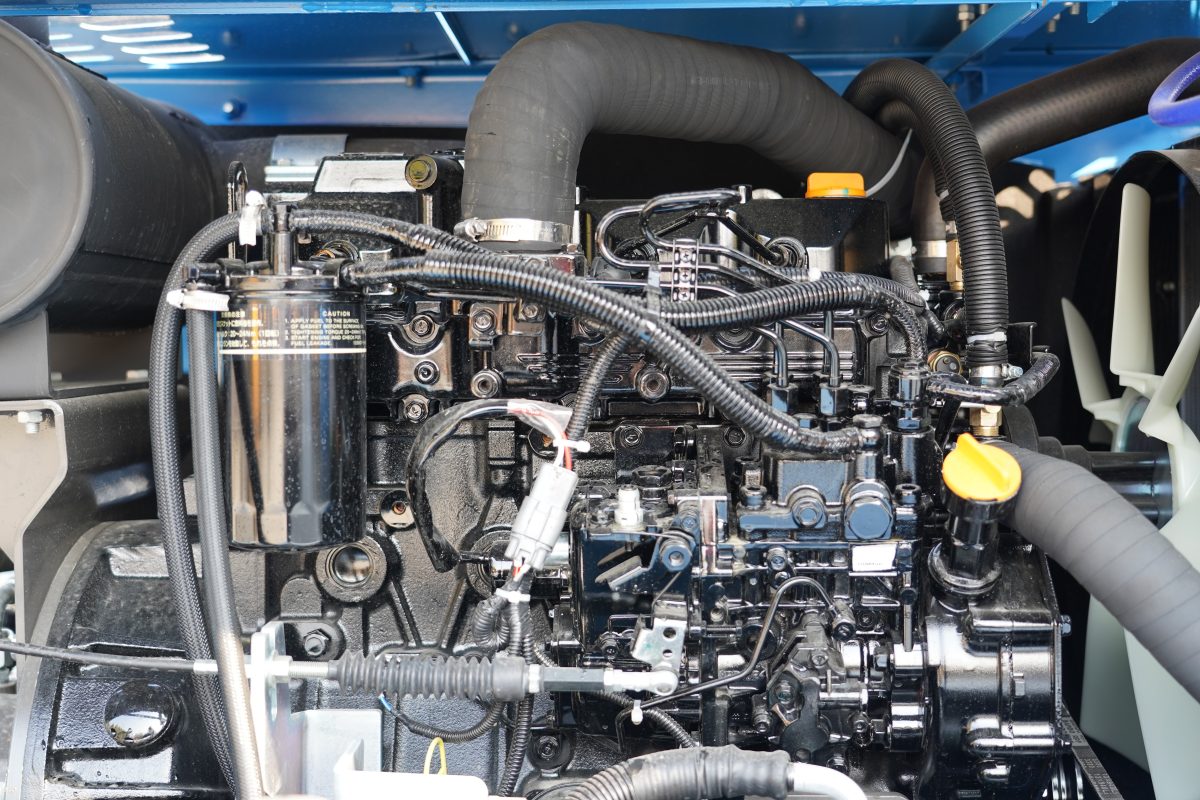

| Engine model | KUBOTA V2607 |
| Power/revolution speed (kW/rpm) | 42.4/2000 |
| Tire model | – |
| System pressure (MPa) | 27 |
| Dimensions L×W×H (mm) | 6054×2216×2672 |
| Cabin height (mm) | 2672 |
| Axle base (mm) | 2209 |
| Wheel (track) distance (mm) | 1745 |
| Minimum ground clearance (mm) | 375 |
| Tail swing radius (mm) | 1730 |
| Max. digging height (mm) | 7023 |
| Max. dumping height (mm) | 5195 |
| Max. digging depth (mm) | 3898 |
| Max. vertical digging depth (mm) | 2968 |
| Max. digging radius (mm) | 6182 |
| Min. swing radius (mm) | 1740 |
| Max. dozer blade lifting distance (mm) | 382 |
| Max. dozer blade cutting distance (mm) | 332 |
