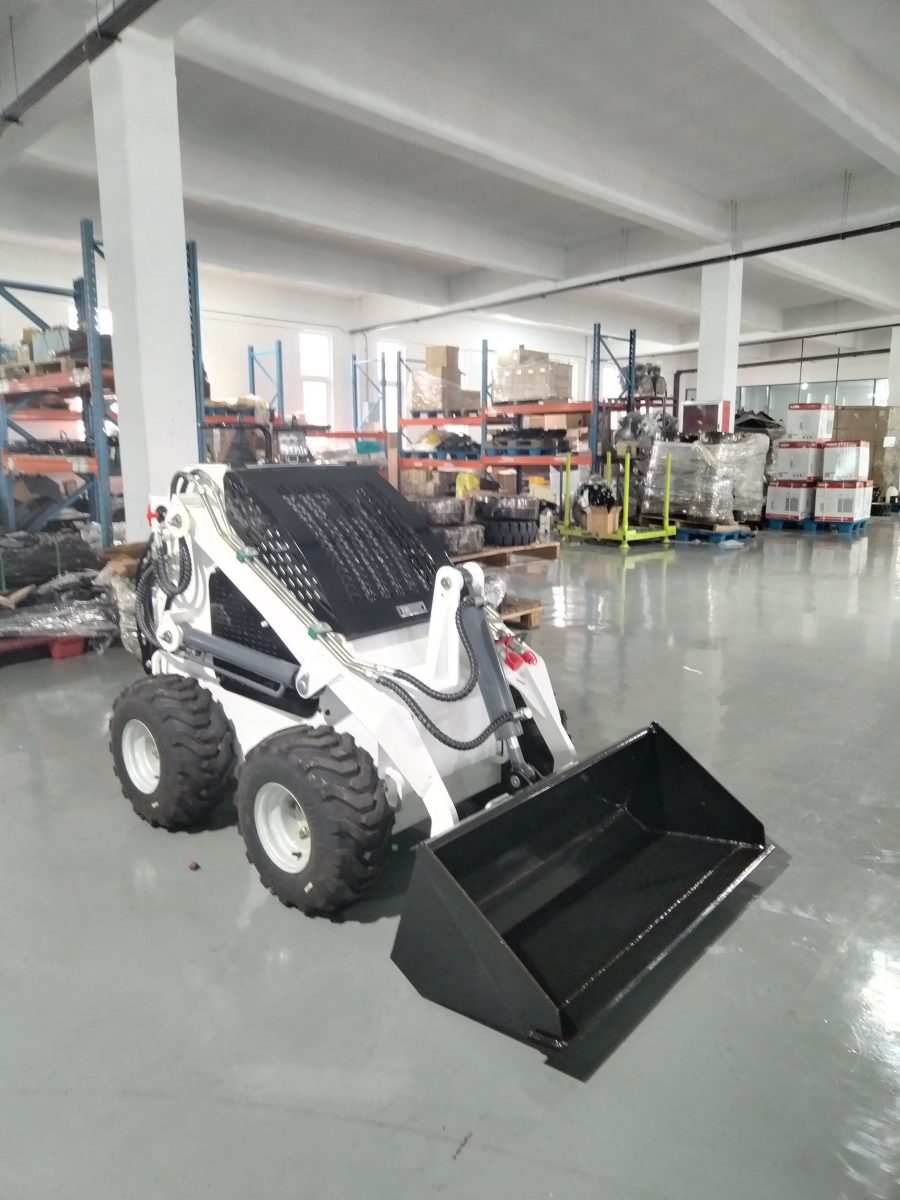

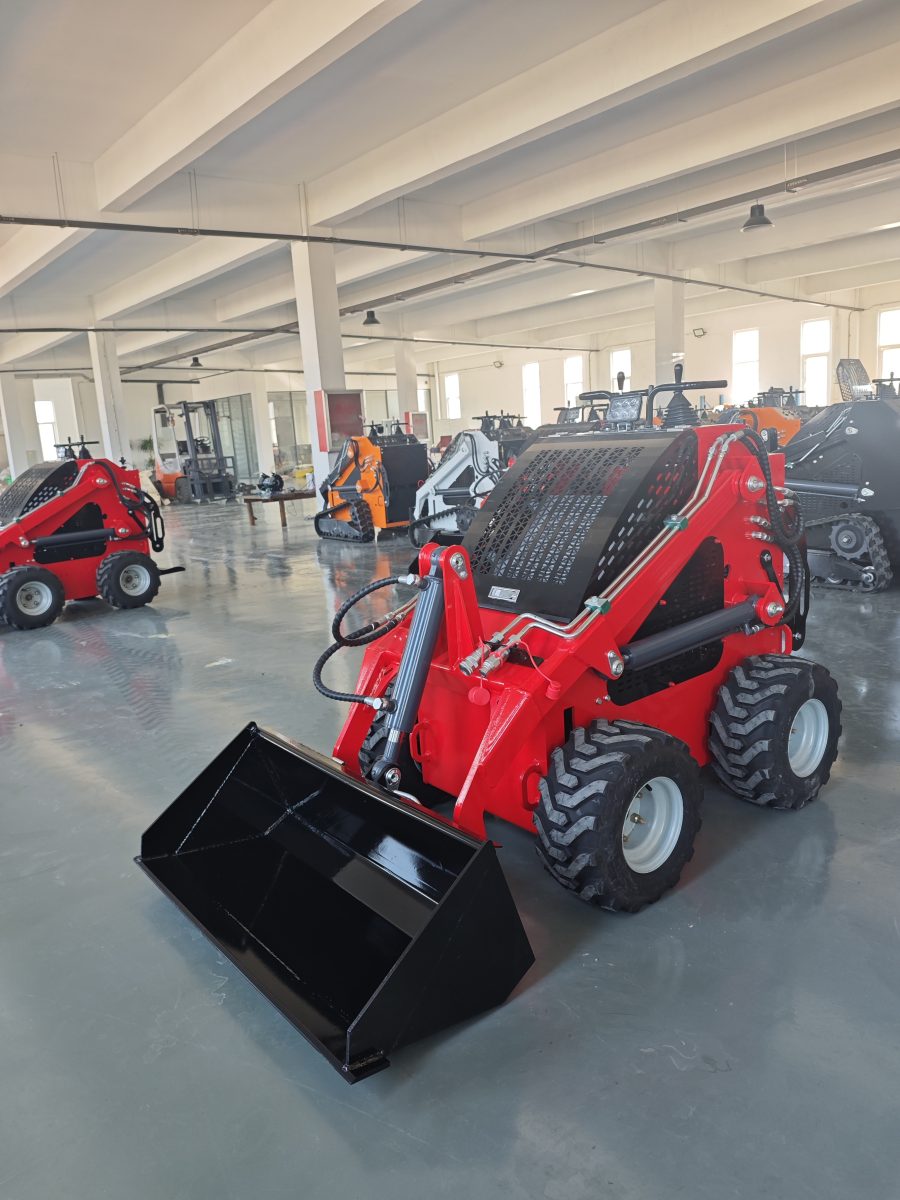

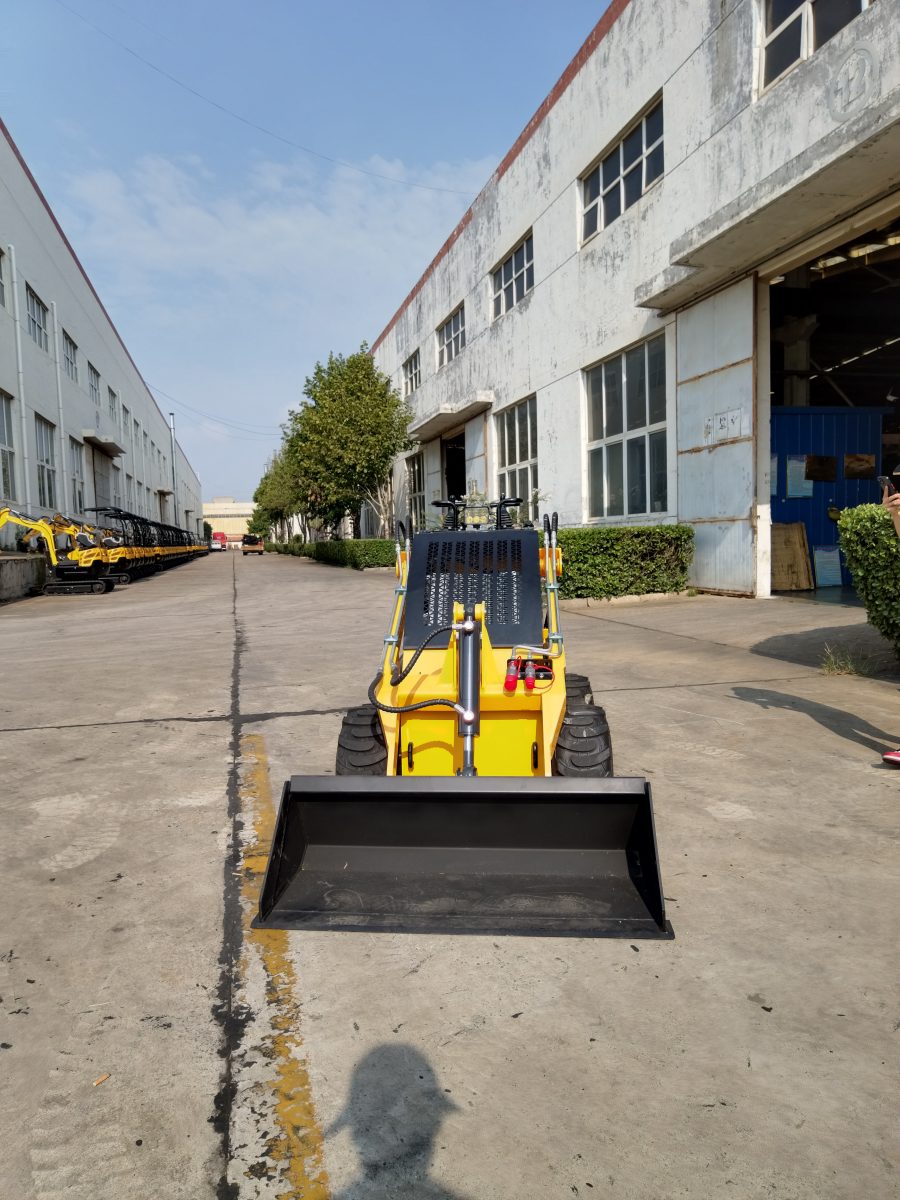

WMS360 Hydraulic Wheel Loader
Powerful, Efficient & Versatile
The WMS390 hydraulic wheel loader is a high-performance construction machine designed to handle diverse loading, lifting, and material transportation tasks with exceptional efficiency. Built with advanced hydraulic technology, this compact wheel loader delivers superior power, enhanced fuel efficiency, and easy operation, making it ideal for various construction, landscaping, agricultural, and municipal projects.
Core Competitive Advantages
- Advanced Hydraulic System: Smooth and responsive controls for effortless operation and precise load handling.
- Fuel-Efficient Engine: Low emissions and optimized fuel consumption reduce operating costs.
- Robust Durability: Heavy-duty frame and components built for longevity in harsh environments.
- Operator Comfort: Spacious cabin with ergonomic controls and excellent visibility for safer, less fatiguing operation.
Easy Operation & Maintenance
Designed with user-friendly controls and a centralized service panel, this wheel loader minimizes downtime and simplifies daily checks. The hydraulic quick-coupler allows fast attachment changes without manual intervention, boosting your operational efficiency.
Energy Saving & High Efficiency
The integration of advanced hydraulic technology and a fuel-efficient engine system ensures maximum work output with minimal energy consumption, reducing your carbon footprint and costs.
Multi-Functionality & Versatile Applications
This multi-purpose hydraulic wheel loader supports a wide range of attachments, making it suitable for diverse environments such as:
- Construction sites (loading, earthmoving, material handling)
- Landscaping and gardening (soil preparation, debris clearing)
- Agricultural fields (feed handling, manure management)
- Municipal maintenance (road cleaning, snow removal)
- Small-scale mining and quarrying
Supported Attachments for Extended Capability
- General-purpose buckets
- Multi-purpose forks
- Hydraulic breakers
- Grapple buckets
- Sweeper brooms
- Snow plows
Target Customer Profile
Ideal for contractors, municipal service providers, landscapers, agricultural operators, and small to medium-sized enterprises seeking reliable, efficient, and versatile loading equipment to maximize productivity across multiple job sites.
Why Choose Our Hydraulic Wheel Loader?
- Proven reliability in demanding environments
- Flexible attachments for diverse tasks
- High operational efficiency reduces costs
- Compact design for easy maneuvering
- Strong after-sales support and service network
Ready to boost your project efficiency with this versatile loader?
Contact Womi Machinery Manufacturer now
WhatsApp: +86 15554401319 | Email: info@womimachinery.com
| Performance Parameters | Dimensional Parameters |
|---|---|
| Engine Brand | KOPU/Runtong/Ballitong |
| Rated Power (HP) | 10/15/13.5 |
| Number of Cylinders | 1 |
| Air Intake Method | Natural |
| Emission Standard | Euro V/EPA |
| Rated Load Capacity (kg) | 200 |
| Maximum Load Capacity (kg) | 300 |
| Maximum Digging Force (kN) | 3.5 |
| Bucket Volume (m³) | 0.12 |
| Travel Speed (km/h) | 0-6 |
| Working Cycle Time (s) | 9 |
| Working System Pressure (bar) | 17-21 |
| Fuel Tank Capacity (L) | 5 |
| Operating Weight (kg) | 900 |
| Tire Model | 18×8.5-8 |
| Maximum Operating Height (mm) | 2450 |
| Height to Bucket Pin (mm) | 1870 |
| Overall Machine Height (mm) | 1300 |
| Maximum Height with Bucket Level (mm) | 1810 |
| Overall Length Without Bucket (mm) | 1550 |
| Overall Length With Standard Bucket (mm) | 2100 |
| Discharge Height (mm) | 1510 |
| Discharge Reach (mm) | 450 |
| Bucket Ground Tilt Angle | 27° |
| Bucket Maximum Height Tilt Angle | 114° |
| Wheelbase (mm) | 850 |
| Ground Clearance (mm) | 150 |
| Tail Length (mm) | 280 |
| Machine Width (mm) | 1050 |
| Bucket Width (mm) | 1000 |
