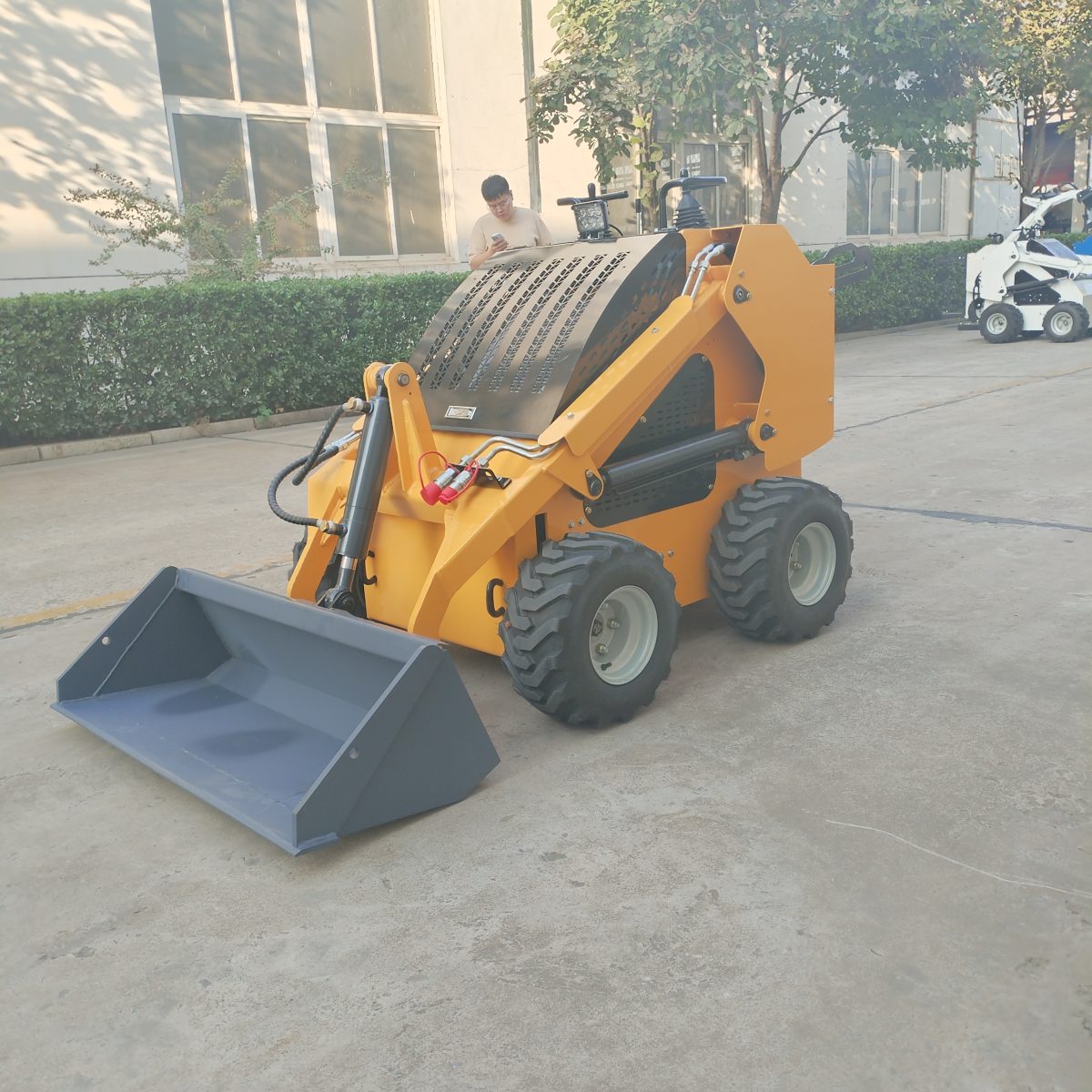

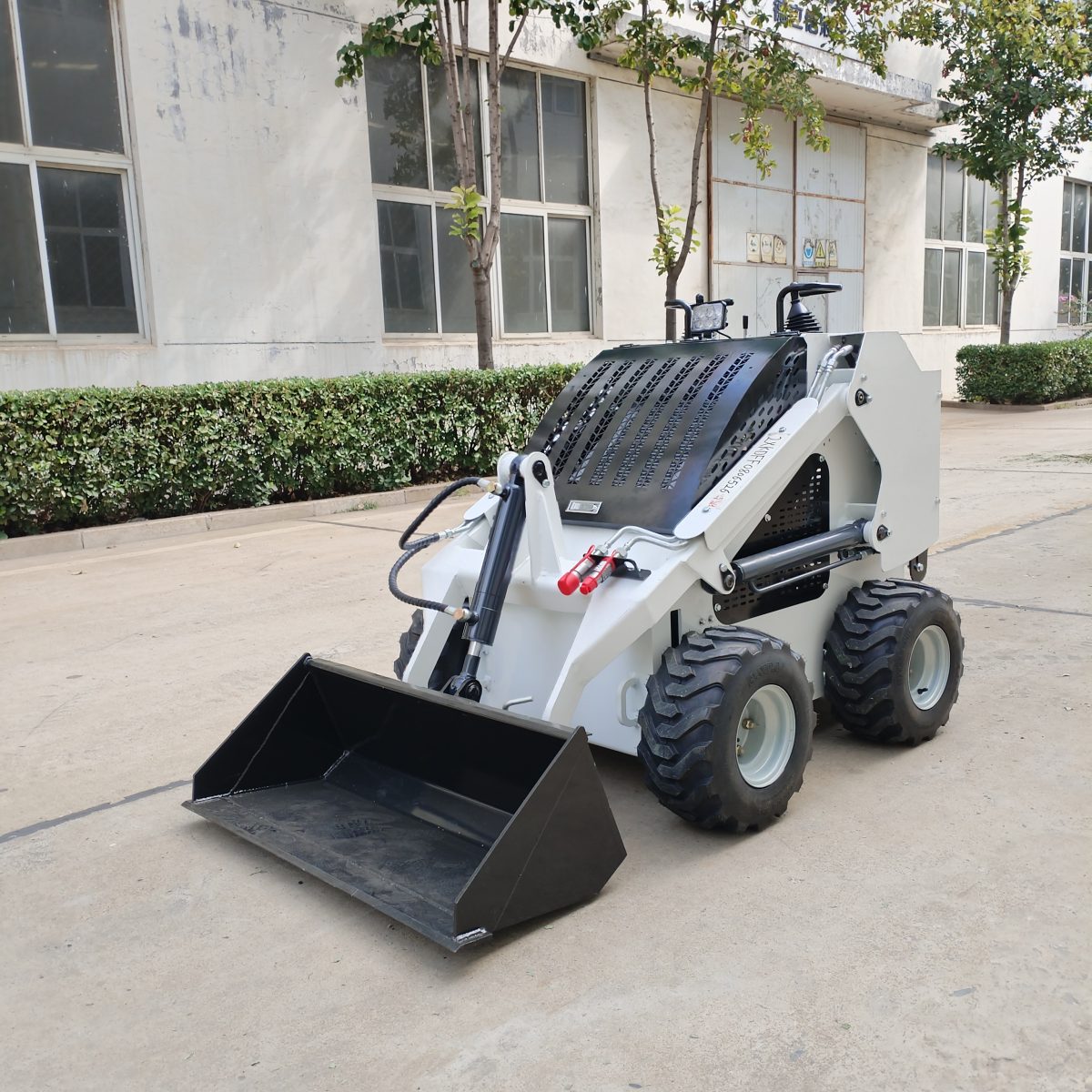

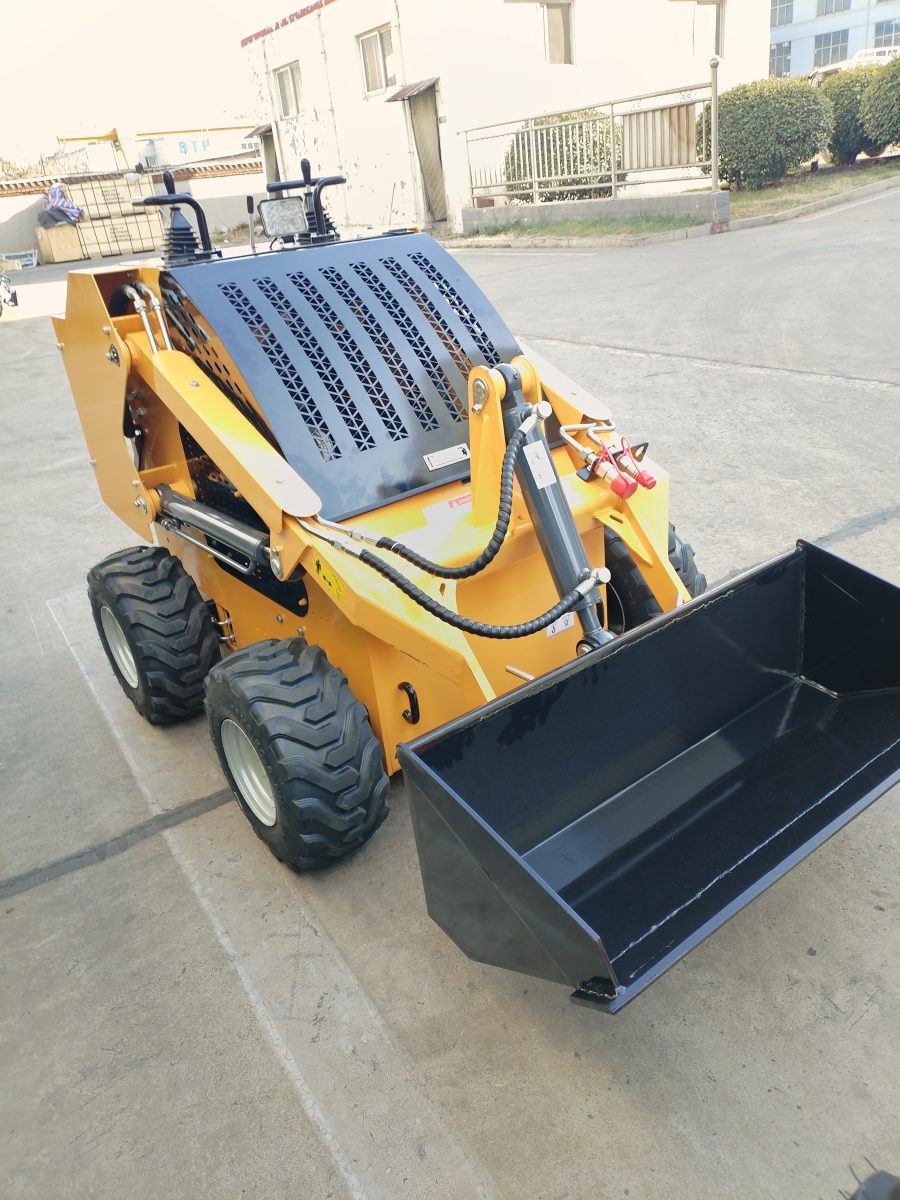

WMS480 Hydraulic Wheel Skid Steer Loader – Compact, Powerful, and Multi-Functional
The WMS480 hydraulic wheel skid steer loader is engineered for maximum versatility and efficiency in a compact design. Equipped with advanced hydraulic systems, durable wheel drive, and quick-attach functionality, this multi-purpose hydraulic loader offers exceptional performance across diverse job sites. Whether you need a small wheel loader for sale or a high-performance mini loader, the WMS480 is the ideal choice.
Core Features & Advantages
- High-Performance Hydraulic System: Ensures smooth, precise control with powerful lifting and digging force.
- Compact Wheel Design: Enhances maneuverability in tight spaces while maintaining stability.
- Quick-Attach System: Allows rapid switching between attachments to maximize productivity.
- Fuel Efficiency: Optimized engine and hydraulic components reduce fuel consumption.
- Operator Comfort: Ergonomic controls and spacious cab minimize fatigue during long shifts.
Compatible Attachments
The WMS480 supports a wide range of attachments, expanding its application potential:
- Standard Bucket
- Hydraulic Breaker
- Auger Drill
- Grapple
- Forks
- Sweeper
With these options, the loader adapts to multiple operations without needing separate machines.
Application Scenarios
- Construction Sites – Earthmoving, material handling, and debris removal
- Landscaping – Soil preparation, grading, and turf installation
- Agriculture – Feeding, manure handling, and field maintenance
- Municipal Maintenance – Road cleaning, snow removal, and waste management
- Small Engineering Projects – Tight-space excavation and light demolition
Ideal for
Contractors, construction companies, landscaping services, farmers, municipal maintenance teams, and small-scale project operators who require a compact hydraulic loader with exceptional adaptability.
Why Choose the WMS480 compact hydraulic loader?
- One machine, multiple applications
- Easy to operate, even for new operators
- Lower ownership cost compared to multiple specialized machines
- Reliable after-sales support from Womi Machinery Manufacturer
Ready to boost your project efficiency with this versatile loader?
Contact Womi Machinery Manufacturer now
WhatsApp: +86 15554401319 | Email: info@womimachinery.com
| Performance Parameters | Dimensional Parameters |
|---|---|
| Engine Brand | Yanmar 380 |
| Rated Power (kW) | 17.8 |
| Number of Cylinders | 3 |
| Air Intake Method | Natural |
| Emission Standard | EPA |
| Rated Load Capacity (kg) | 350 |
| Maximum Load Capacity (kg) | 480 |
| Maximum Digging Force (kN) | 4.5 |
| Bucket Volume (m³) | 0.12 |
| Travel Speed (km/h) | 0-6 |
| Working Cycle Time (s) | 9 |
| Working System Pressure (bar) | 17-21 |
| Fuel Tank Capacity (L) | 13 |
| Operating Weight (kg) | 1100 |
| Tire Model | 18×8.5-8 |
| Maximum Operating Height (mm) | 2450 |
| Height to Bucket Pin (mm) | 1870 |
| Overall Machine Height (mm) | 1300 |
| Maximum Height with Bucket Level (mm) | 1810 |
| Overall Length Without Bucket (mm) | 1680 |
| Overall Length With Standard Bucket (mm) | 2206 |
| Discharge Height (mm) | 1510 |
| Discharge Reach (mm) | 450 |
| Bucket Ground Tilt Angle | 27° |
| Bucket Maximum Height Tilt Angle | 114° |
| Wheelbase (mm) | 850 |
| Ground Clearance (mm) | 150 |
| Tail Length (mm) | 280 |
| Machine Width (mm) | 1150 |
| Bucket Width (mm) | 1000 |
