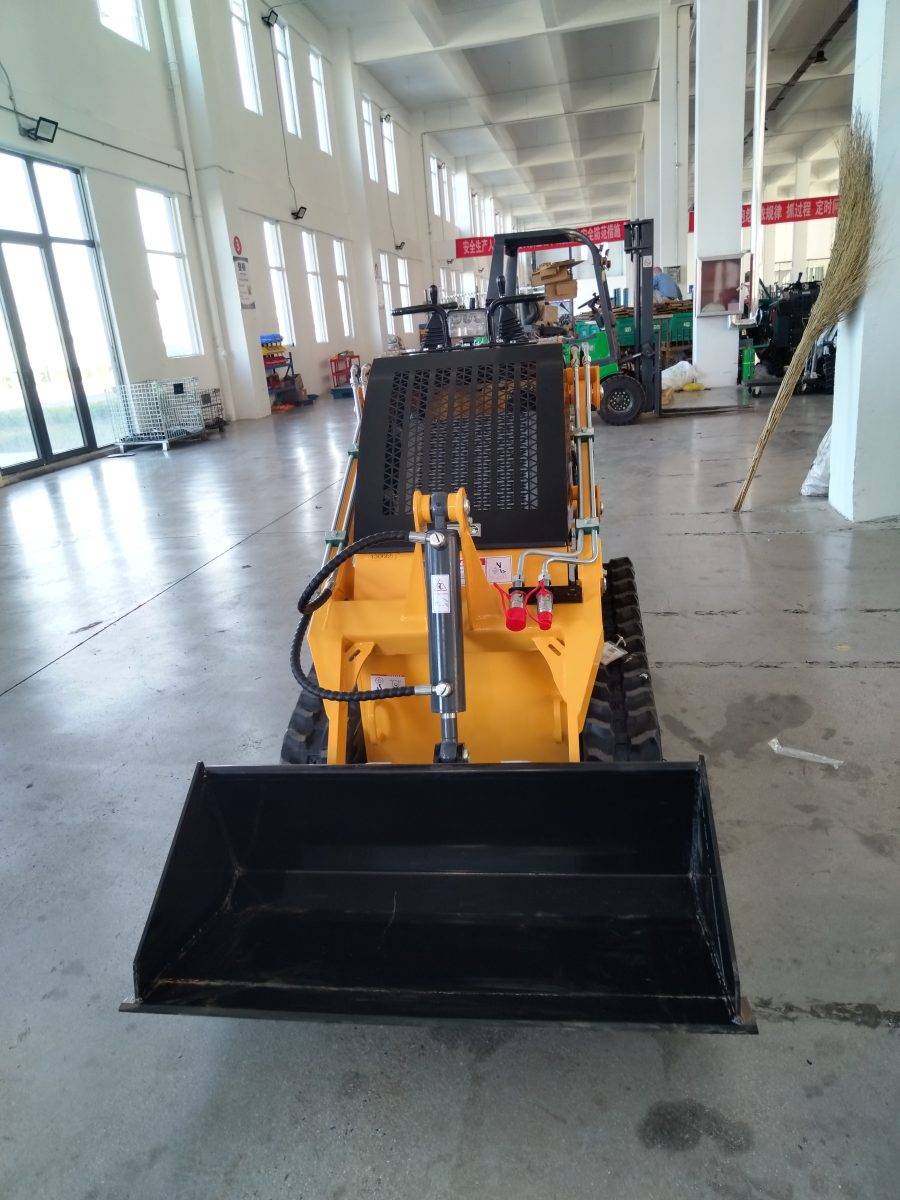

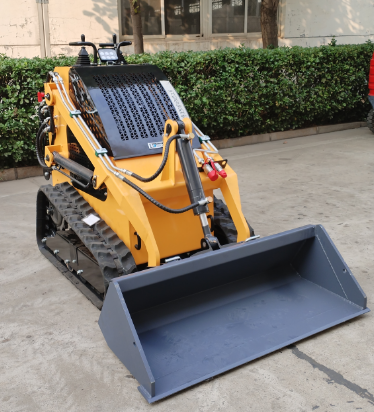

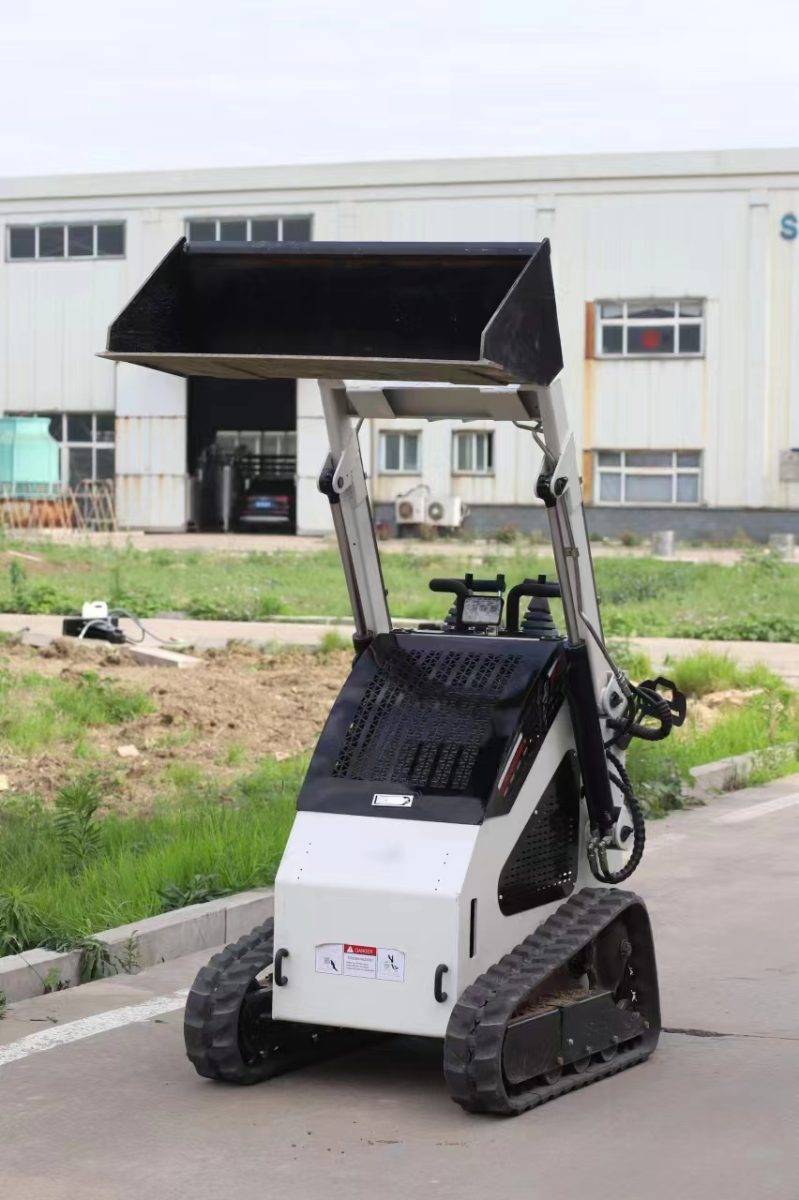

The WMT360 Compact Crawler Skid Steer Loader is engineered for versatility, efficiency, and ease of operation. Designed with advanced hydraulic systems, robust undercarriage, and powerful engine performance, it excels in construction, landscaping, agriculture, municipal maintenance, and small-scale engineering projects.
Core Features & Advantages
High Performance: 36 HP engine, 0-12 km/h travel speed, max lifting height 2.5m, max lifting capacity 1000kg, optimized for quick and efficient material handling.
Energy Efficient: Low fuel consumption hydraulic system, reduced emissions, and eco-friendly operation.
Operator-Friendly: Spacious cabin with intuitive controls, excellent visibility, and minimal vibration for extended operation comfort.
Compact & Flexible: Small footprint for easy maneuvering in narrow spaces and urban sites.
Durable & Reliable: Reinforced steel undercarriage and robust hydraulic components ensure long service life.
Compatible Attachments
Supports a wide range of hydraulic attachments to extend functionality:
Bucket (general purpose, rock, multi-purpose)
Auger
Forks & Pallet Fork
Hydraulic Hammer
Sweeper & Grapple
| T360 Compact Track Loader Specifications | |
|---|---|
| Engine Options | KOPU/Runtong/Ballitong |
| Power Options | 10/15/13.5 HP (7.5/11.2/10 kW) |
| Engine Configuration | 1-cylinder, natural aspiration |
| Emission Standard | Euro V/EPA compliant |
| Load Capacity | 200 kg rated / 300 kg max (441/661 lbs) |
| Digging Force | 3.5 kN (787 lbf) |
| Bucket Capacity | 0.12 m³ (4.24 cu ft) |
| Travel Speed | 0-6 km/h (0-3.7 mph) |
| Hydraulic Pressure | 17-21 bar (246-305 psi) |
| Fuel Capacity | 5 L (1.32 gal) |
| Operating Weight | 900 kg (1,984 lbs) |
| Track Width | 180 mm (7.1 in) |
| Key Dimensions | Length: 2.1m (82.7″) with bucket Width: 930mm (36.6″) Height: 1.36m (53.5″) |
| Bucket Features | Width: 1,000mm (39.4″) Max tilt: 114° Dump angle: 34° |
| Work Cycle Time | 9 seconds |
